What is Memory Controller?


A memory controller is a crucial component in a computer system that manages the flow of data to and from the computer's main memory, also known as RAM (Random Access Memory). The primary function of a memory controller is to facilitate communication between the CPU (Central Processing Unit) and the memory modules. Here are key points regarding memory controllers:

Functions of a Memory Controller:

  1. Data Access: The memory controller controls the read and write operations to the system memory, enabling the CPU to retrieve data for processing and store results back to memory.

  2. Addressing: It manages the memory address space, ensuring that data is stored and retrieved accurately from specific locations within the memory modules.

  3. Speed and Efficiency: The memory controller optimizes memory access speeds by coordinating data transfers between the CPU and memory, reducing latency and maximizing system performance.

  4. Error Correction: Some advanced memory controllers support Error Correction Code (ECC) to detect and correct memory errors, enhancing system reliability.

  5. Memory Configuration: It configures the memory modules (e.g., setting memory timings, frequency, voltage) to ensure compatibility and optimal performance.

Types of Memory Controllers:

  1. Integrated Memory Controller (IMC): Found in modern CPUs, the IMC is integrated directly onto the processor die and manages memory access without the need for an external chipset.

  2. Northbridge Memory Controller: In older systems, the memory controller was part of the Northbridge chipset, which handled communication between the CPU, memory, and other peripherals.

  3. Specialized Memory Controllers: In some systems, there may be dedicated memory controllers for specific tasks like graphics memory (GPU memory controller) or high-performance computing.

Significance of Memory Controllers:

  1. Performance: A well-optimized memory controller can significantly impact system performance by efficiently managing data transfers between the CPU and memory.

  2. Compatibility: Memory controllers ensure that memory modules are correctly recognized and utilized by the system, promoting compatibility and stability.

  3. Scalability: Memory controllers play a role in supporting different memory technologies and capacities, allowing for system scalability as memory requirements change.

  4. Overclocking: Advanced memory controllers offer settings for adjusting memory timings and frequencies, enabling enthusiasts to overclock memory for increased performance.

  5. Efficiency: By controlling the flow of data to and from memory, memory controllers help minimize bottlenecks and optimize system efficiency in data-intensive tasks.

In summary, a memory controller serves as a vital link between the CPU and system memory, managing data access, addressing, and performance parameters to ensure efficient and reliable operation of a computer system. Its role in coordinating memory operations is fundamental to achieving optimal system performance and responsiveness.


How Does Memory Controller Work?

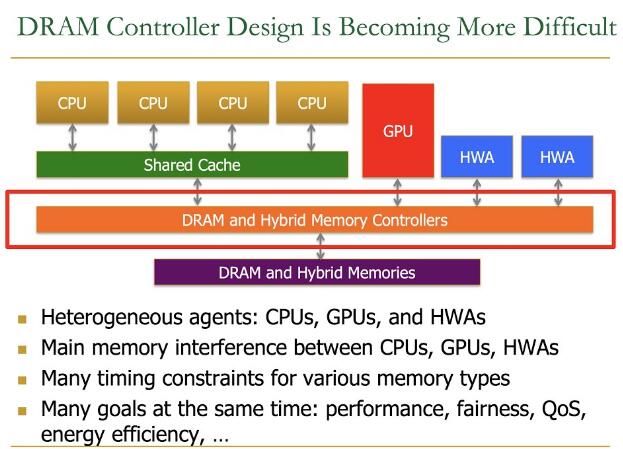

The memory controller is a crucial component in a computer system responsible for managing the flow of data between the CPU and the system memory (RAM). Understanding how a memory controller works involves looking at its key functions and the overall process of data access and communication within a computer system. Below is an overview of how a memory controller operates:

1. Data Flow Management:

  • When the CPU needs to read or write data to the system memory, it sends requests to the memory controller.
  • The memory controller interprets these requests and coordinates the transfer of data between the CPU and memory modules.

2. Address Mapping:

  • The memory controller manages the memory address space, translating logical memory addresses used by the CPU into physical addresses that locate the data in the memory modules.
  • It ensures that data is correctly stored and retrieved from the appropriate memory locations.

3. Data Transfer Protocols:

  • The memory controller uses specific protocols and interfaces (e.g., DDR, DDR2, DDR3, DDR4) to communicate with the memory modules.
  • It controls the timing of data transfers, addressing latency, and ensuring data integrity during read and write operations.

4. Memory Access Optimization:

  • The memory controller optimizes data access by scheduling read and write requests to minimize access latency and maximize memory bandwidth.
  • It may use techniques like pipelining and caching to improve data delivery speed and efficiency.

5. Error Detection and Correction:

  • Advanced memory controllers support Error Correction Code (ECC) functionality to detect and correct memory errors, enhancing system reliability.
  • ECC helps in identifying and rectifying single-bit errors and detecting multi-bit errors to prevent data corruption.

6. Configuration and Management:

  • The memory controller configures memory settings such as timings, frequencies, and voltage levels to ensure proper operation of the memory modules.
  • It manages memory-related parameters to optimize performance and stability based on system requirements.

7. Advanced Features:

  • Some memory controllers support features like memory interleaving, multi-channel memory access, and dynamic memory allocation for improved system performance and responsiveness.

8. Integration with CPU:

  • In integrated memory controllers (such as those found in modern processors), the memory controller is part of the CPU die, reducing latency and improving memory access speeds.
  • The close proximity of the memory controller to the CPU enhances communication efficiency and overall system performance.

9. System Performance Impact:

  • A well-optimized memory controller plays a critical role in overall system performance, ensuring fast and efficient data access between the CPU and memory.
  • By minimizing memory access latencies and maximizing memory bandwidth, the memory controller contributes to responsive and high-performance computing.

In essence, a memory controller acts as a bridge between the CPU and system memory, orchestrating data transfers, addressing, timing, and error correction to facilitate efficient and reliable communication within a computer system. Its effective operation is essential for achieving optimal system performance, data integrity, and responsiveness in various computing tasks.


History of Memory Controllers


The history of memory controllers is intertwined with the evolution of computer systems and their memory management techniques. Here is an overview of the key developments and milestones in the history of memory controllers:

1. Early Computer Systems:

  • In the early days of computing, memory management was rudimentary, with simple control circuits interfacing the CPU with memory modules like core memory or early RAM technologies.
  • Computers used discrete components and custom-designed memory access circuitry to manage data transfers between the CPU and memory.

2. Integrated Memory Controllers:

  • The concept of the memory controller began to evolve with the integration of memory management functions directly onto the CPU die.
  • In the late 20th century and early 21st century, advancements in semiconductor technology enabled the integration of memory controllers into central processing units (CPUs).

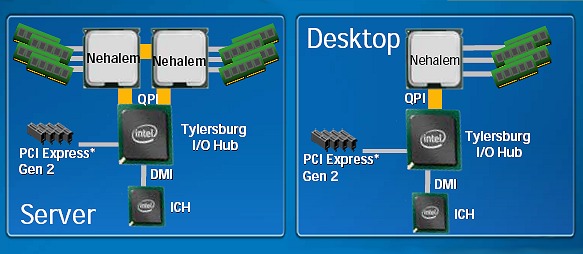

  • Intel introduced integrated memory controllers with their Nehalem architecture in 2008, followed by AMD's integration of memory controllers in their processors.

3. DDR Memory Controller Development:

  • As memory technology evolved from single data rate (SDR) to double data rate (DDR) and subsequent DDR2, DDR3, and DDR4 standards, memory controllers had to adapt to support these advancements.
  • DDR memory controllers were designed to manage the faster data transfer rates and increased bandwidth of DDR memory modules.

4. Advancements in Memory Technologies:

  • With the introduction of technologies like ECC (Error Correction Code) memory support, memory controllers gained the ability to detect and correct memory errors, enhancing system reliability.
  • High-performance computing environments began to leverage memory controllers with features like memory interleaving, multi-channel memory access, and advanced memory management capabilities.

5. Scalability and Performance Enhancements:

  • Memory controllers evolved to support larger memory capacities and faster data speeds, enabling better system scalability and improved performance in demanding computing environments.
  • Features such as memory prefetching, data caching, and advanced memory access optimizations were implemented to enhance memory controller efficiency.

6. Specialized Memory Controllers:

  • In addition to general-purpose memory controllers, specialized memory controllers were developed for specific applications like graphics processing units (GPUs), networking equipment, and storage devices.
  • These specialized controllers were designed to meet the unique performance and data handling requirements of specialized computing tasks.

7. Integration with System Chipsets:

  • Memory controllers were traditionally part of the system chipset on motherboards, coordinating memory access between the CPU and memory modules.
  • As computing architectures evolved, memory controllers were integrated into the CPU or into dedicated memory controller hubs within the chipset.

8. Recent Trends:

  • Modern memory controllers continue to evolve, incorporating support for emerging memory technologies like DDR5, LPDDR4/5, HBM (High Bandwidth Memory), and other high-speed memory standards.
  • Emphasis is placed on memory controller efficiency, power optimization, error detection and correction capabilities, and compatibility with a range of memory configurations.

The history of memory controllers reflects the constant evolution in computer architecture, memory technologies, and performance requirements. From basic memory management circuits to integrated memory controllers within modern processors, these components have played a crucial role in optimizing data access, enhancing system performance, and supporting the increasing demands of computing applications.


Classification of Memory Controller


Memory controllers can be classified based on various factors such as their functionality, compatibility with different memory types, integration level, and specific applications. Here are some common classifications of memory controllers:

Based on Functionality:

  1. General-Purpose Memory Controllers:

    • These controllers are designed to work with a wide range of memory types and are commonly found in desktop and laptop computers.
  2. Specialized Memory Controllers:

    • Memory controllers tailored for specific applications such as graphics processing units (GPUs), networking devices, embedded systems, or high-performance computing clusters.

Based on Memory Type Compatibility:

  1. DDR Memory Controllers:

    • Controllers optimized for DDR (Double Data Rate) memory technologies like DDR3, DDR4, and DDR5.
  2. LPDDR Memory Controllers:

    • Controllers designed for Low Power DDR (LPDDR) memory, commonly used in mobile devices for power efficiency.
  3. HBM Memory Controllers:

    • Memory controllers specifically for High Bandwidth Memory (HBM), a high-performance stacked memory technology often used in GPUs and high-performance computing applications.

Based on Integration Level:

  1. Integrated Memory Controllers (IMC):

    • Controllers integrated directly onto the CPU die, providing close proximity to the processor for improved memory access speeds and reduced latency.
  2. External Memory Controllers:

    • Controllers housed in chipsets or dedicated memory controller hubs external to the CPU, managing memory access in systems where the memory controller is not integrated into the processor.

Based on Application Domain:

  1. Desktop Memory Controllers:

    • Controllers optimized for desktop computing systems, balancing performance and power efficiency for desktop applications.
  2. Mobile Memory Controllers:

    • Controllers tailored for mobile devices, focusing on power optimization and compatibility with low-power memory technologies.
  3. Server Memory Controllers:

    • Controllers designed for server environments, emphasizing high memory bandwidth, data integrity features, and support for large memory capacities.

Based on Features:

  1. Error Correction Code (ECC) Memory Controllers:

    • Controllers that support ECC memory for error detection and correction, enhancing system reliability in critical computing environments.
  2. Multi-Channel Memory Controllers:

    • Controllers with multiple memory channel support for increased memory bandwidth and improved system performance.
  3. Advanced Performance Memory Controllers:

    • Controllers with features like memory interleaving, data prefetching, and optimized memory access to enhance system performance in demanding computing applications.

Based on Memory Architecture:

  1. Serial Memory Controllers:

    • Controllers designed for serial memory technologies like Serial Peripheral Interface (SPI) Flash memory used in embedded systems.
  2. Parallel Memory Controllers:

    • Controllers for parallel memory interfaces used in traditional DRAM modules for desktop and server applications.

These classifications help in understanding the diverse range of memory controllers available, each tailored for specific applications, memory technologies, and system requirements. Memory controllers play a critical role in managing memory access, optimizing data transfers, and enhancing system performance in various computing environments.
