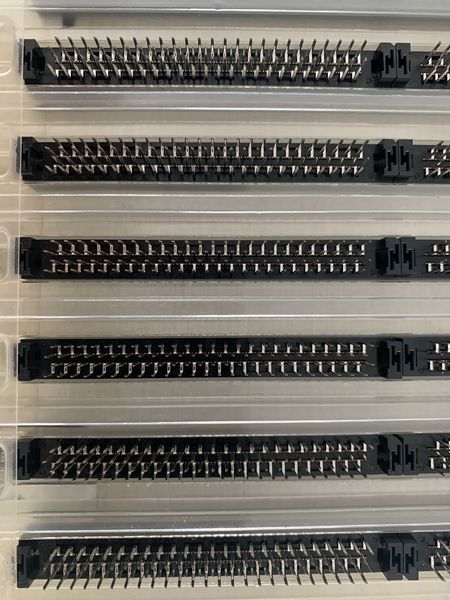

TX25-100P-8ST-N1E JAE Electronics CONN PLUG 100POS VERT GOLD


The part "TX25-100P-8ST-N1E" from JAE Electronics is a connector plug with the following key specifications:


  • Manufacturer: JAE Electronics
  • Part Number: TX25-100P-8ST-N1E
  • Type: Connector Plug
  • Number of Positions: 100
  • Orientation: Vertical
  • Contact Plating: Gold-plated contacts
  • DataSheet

    TX25-100P-8ST-N1E PDF

Key Features and Information:

  • Connector Type: This is a plug connector, suggesting it is a male connector that can be plugged into a corresponding female connector.
  • Number of Positions: The connector has 100 positions or pins, facilitating the connection of numerous electrical signals or wires.
  • Orientation: The vertical orientation indicates that the connector is designed to be plugged vertically into a corresponding receptacle or socket.
  • Contact Plating: Gold plating is commonly used on connectors for its excellent conductivity, corrosion resistance, and durability.


Connectors like the TX25-100P-8ST-N1E are commonly used in various electronic devices and systems where a reliable electrical connection is necessary. Some of the typical applications of this type of connector include:

  • Telecommunications equipment
  • Networking devices
  • Industrial machinery
  • Medical devices
  • Test and measurement instruments
  • Aerospace and defense systems

For detailed technical specifications, pin configurations, mating connector information, and guidelines for using the TX25-100P-8ST-N1E connector plug, it is advisable to refer to the official datasheet provided by JAE Electronics. The datasheet will offer precise details on the connector's design, electrical characteristics, and optimal usage conditions. Should you require specific information or support, reaching out to JAE Electronics' technical support team is recommended.
