Are Resistors Polarized


As we all know, it’s essential to check the polarity of components before we use them. This passage will give information on whether resistors are polarized, why or why not, and tips on how to determine if a component has polarity.

Do Resistors Have Polarity

No, standard resistors do not have polarity.

Resistors are passive two-terminal electronic components that restrict the flow of current in a circuit and are used to control the amount of current or voltage in an electrical circuit. Unlike components such as diodes, LEDs, or electrolytic capacitors, resistors do not have a specific polarity or directionality.

This means that you can connect a resistor in a circuit in either orientation without needing to worry about its polarity. The direction in which you connect a resistor does not affect its function—it will still provide the specified resistance to the flow of electric current regardless of how it is oriented in the circuit.

In general, when working with resistors in electronic circuits, you can freely connect them in any direction without concern for polarity. This flexibility makes resistors easy to use and versatile components in a wide range of electronic applications.

Why doesn't Resistors Have Polarity

Resistors are non-polar components because they do not have a specific direction of current flow. Here are the main reasons why resistors do not have polarity:

  1. Symmetrical Construction: Resistors have a symmetrical structure, meaning that they are identical across both terminals. The internal composition of a resistor is uniform, and the flow of current through the resistor is the same regardless of the direction in which it is connected.

  2. Passive Components: Resistors are passive components that impede the flow of current in a circuit. Unlike active components like diodes or transistors, which have specific semiconductor junctions that regulate the flow of current in one direction, resistors do not rely on internal junctions that dictate polarity.

  3. Electrical Function: The primary function of a resistor is to resist or limit the flow of electric current in a circuit. The resistance value of a resistor is determined by its construction and material properties, and this resistance remains constant regardless of the direction of current flow through the resistor.

  4. Simplified Design: By not having polarity, resistors are easier to use in electronic circuits. Engineers and hobbyists can connect resistors in any orientation without needing to worry about the direction of current flow. This convenience and simplicity in design contribute to the broad applicability of resistors across various electronic devices.

In summary, resistors do not have polarity because of their symmetrical construction, passive nature, and function as components that resist current flow without regard to the direction in which current passes through them. This inherent lack of polarity simplifies their use in electronic circuits and allows for easy integration into a wide range of applications.

Why is Polarity Important to Components

Polarity is crucial in electronic components for several reasons:

  1. Functionality: Many electronic components, such as diodes, LEDs, and electrolytic capacitors, rely on polarity for proper functionality. For example, diodes and LEDs allow current to flow in one direction while blocking it in the opposite direction. Reversing polarity in these components can result in improper operation or damage.

  1. Correct Circuit Operation: In circuits where the direction of current flow matters, maintaining the correct polarity is essential for the circuit to operate as intended. Reversing polarity in components like polarized capacitors or voltage regulators can lead to circuit malfunction and potential damage.

  2. Component Protection: Polarity markings on components serve as a guide for proper installation and connection, helping to prevent damage due to reversed voltage or current direction. Connecting components with incorrect polarity may cause them to fail or degrade prematurely.

  3. Performance: Components like transistors, integrated circuits, and sensors may have specific pin configurations that require correct polarity to ensure optimal performance. Reversing polarity in these components can lead to signal distortion, inaccurate measurements, or complete failure.

  4. Safety: Following polarity markings on components helps ensure the safety of the electronic device and prevents hazards such as short circuits, overheating, or electrical malfunctions. Proper polarity alignment reduces the risk of electrical shorts or component damage, enhancing the overall safety of the circuit.

  5. Efficiency: Maintaining correct polarity in components ensures the efficient operation of electronic systems. Properly oriented components contribute to the overall functionality and efficiency of the circuit, allowing it to operate at peak performance levels.

In summary, understanding and observing polarity markings on electronic components are essential to ensure proper functionality, circuit operation, component protection, performance optimization, safety, and efficiency. By following polarity guidelines, electronics designers and technicians can prevent damage, uphold performance standards, and promote the reliable operation of electronic systems.

How to Determine if a Component Has Polarity

Determining whether a component has polarity is essential to correctly connecting it in an electronic circuit. Here are some common ways to identify if a component has polarity:

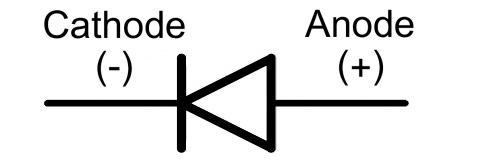

  1. Check the Component Markings: Many components have polarity markings printed on them. Look for symbols such as "+" and "-" signs, anode/cathode markings for diodes, or specific pin designations indicating polarity.

  2. Examine the Component Datasheet: Refer to the component datasheet provided by the manufacturer. Datasheets typically include information about the component's pinout, polarity, and orientation requirements.

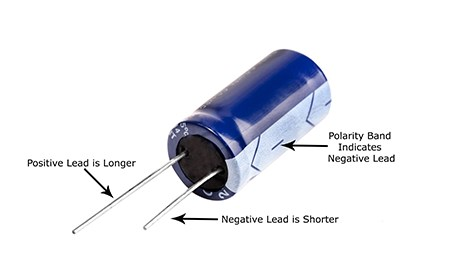

  3. Inspect Physical Features: Certain components have physical characteristics that indicate polarity. For example, electrolytic capacitors have a longer positive lead and a shorter negative lead. LEDs often have a longer anode (+) lead and a shorter cathode (-) lead.

  4. Search for Polarity Markings: Look for any polarity markings, color codes, or arrows on the component body or near the terminals. These markings may indicate the orientation or polarity requirements of the component.

  5. Use a Multimeter: If unsure about a component's polarity, you can use a multimeter in diode mode to test for polarity. The multimeter will show the forward voltage drop and indicate which lead corresponds to the anode (+) and cathode (-) terminals.

  6. Consult Component Manuals or Guides: Refer to user manuals, application notes, or online resources provided by the component manufacturer. These resources often contain detailed information about component polarity and proper connection methods.

  7. Visual Inspection of Component Structure: Some components, such as polarized capacitors or specific semiconductor devices, may have an asymmetric structure that indicates polarity. Careful visual inspection of the component structure can provide clues about polarity.

  8. Experiment and Test Safely: If unsure about a component's polarity, it's advisable to experiment and test with caution. Start with lower voltages and verify polarity before applying full power to avoid damaging the component due to incorrect polarity.

By following these tips and methods, you can determine whether a component has polarity and correctly identify the orientation or polarity requirements for proper connection in your electronic circuits. It is crucial to pay attention to polarity to prevent damage, ensure proper functionality, and maintain safety in electronic systems.
