NX-DA2603 Omron Automation OUTPUT MODULE 2 ANALOG

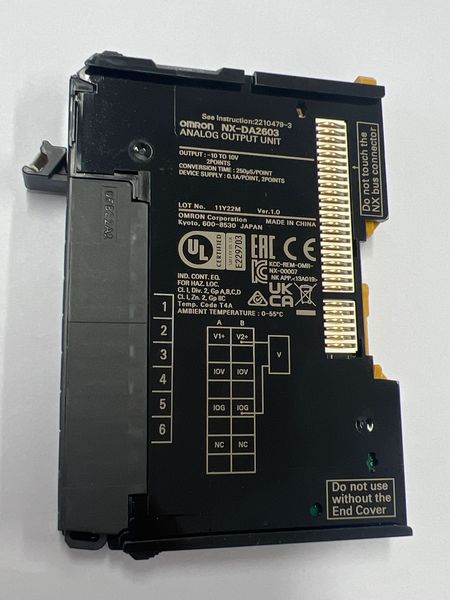

The NX-DA2603 is an analog output module manufactured by Omron Automation. Here are the key specifications and details about this component:

• Manufacturer: Omron Automation
• Model: NX-DA2603
• Type: Output Module
• Number of Outputs: 2 (Analog)
• Signal Type: Analog Output

• DataSheet

  NX-DA2603 PDF

Key Features:

1. Analog Output Module: The NX-DA2603 is designed to provide analog output signals in industrial automation and control systems.

2. Number of Outputs: This module offers 2 analog output channels, allowing for precise control and communication of analog signals.

3. Signal Type: The outputs are analog signals, which enable the module to interface with analog devices or systems that require varying voltage or current levels.

Main Specifications and Uses:

• Analog Output: Analog output modules like the NX-DA2603 are useful for applications where varying and precise control of analog signals is required.

• Industrial Automation: Analog output modules are commonly used in industrial automation for tasks such as controlling variable speed drives, regulating valves, adjusting motor speeds, and more.

• Process Control: Used in process control systems for controlling parameters such as temperature, pressure, flow rates, and other continuous variables.

• PLC Systems: Integrated into Programmable Logic Controller (PLC) systems for interfacing with analog devices and sensors.

Typical Applications:

• Motion Control: Used to control motor speed and position in motion control systems.

• Variable Frequency Drives (VFDs): Adjusting the speed of motors controlled by VFDs.

• PID Control: Implementing Proportional-Integral-Derivative (PID) control loops for maintaining desired process parameters.

• Data Acquisition: Sending analog signals to data acquisition systems for monitoring and analysis.

Implementation:

• Configuration: Configure the analog output channels based on the voltage or current levels required for your specific application.

• Calibration: Calibrate the output signals to ensure accuracy and reliability in controlling external devices or processes.

• Interfacing: Properly connect the analog output channels to the devices they control, ensuring compatibility and signal integrity.

• Testing and Validation: Test the analog output module with connected devices, verify the output signals, and ensure they meet the expected performance criteria.

Before integrating the NX-DA2603 analog output module into your automation system, refer to Omron's documentation, user manuals, and technical specifications to ensure proper installation, setup, and operation within your control system.
