What is the Difference between MOM, MIM and MOS Capacitors?

This article mainly introduces the structure, principle, advantages and disadvantages of MOM, MIM and MOS capacitors and the difference between them.

MIM capacitor

A Metal-Insulator-Metal (MIM) capacitor is a type of capacitor that consists of two metal electrodes separated by an insulating layer. Here is a detailed overview of MIM capacitors:

Structure:

• Metal Layers: MIM capacitors have two metal layers that act as electrodes. These metal layers are typically made of materials like aluminum or copper.
• Insulating Layer: The metal layers are separated by an insulating layer, which serves as the dielectric. Common insulating materials used in MIM capacitors include silicon dioxide (SiO2), silicon nitride (Si3N4), or other high dielectric constant materials.

Principle of Operation:

• Capacitance: MIM capacitors store electrical energy in the form of an electric field between the two metal electrodes. The insulating layer between the metal layers acts as a dielectric, allowing the capacitor to store charge.
• Dielectric Properties: The dielectric layer's thickness and material properties determine the capacitance value and performance characteristics of the MIM capacitor.
• Charge Storage: When a voltage is applied across the metal electrodes, electric charge accumulates on the electrodes and induces an electric field in the insulating layer, leading to the storage of energy.

Advantages of MIM Capacitors:

• Stable Capacitance: MIM capacitors can provide stable capacitance values over a wide range of frequencies and temperatures.
• High Insulation Resistance: The insulating layer in MIM capacitors offers high insulation resistance, reducing leakage currents and ensuring reliable performance.
• Suitable for High-Frequency Applications: MIM capacitors are commonly used in high-frequency and microwave circuits due to their stable performance characteristics.

Disadvantages of MIM Capacitors:

• Limited Capacitance Density: MIM capacitors may have limitations in achieving high capacitance density compared to other types of capacitors.
• Fabrication Complexity: The choice of insulating material and deposition techniques can impact the fabrication complexity of MIM capacitors.
• Process Sensitivity: The performance of MIM capacitors may be sensitive to process variations during fabrication.

Applications of MIM Capacitors:

• RF and Microwave Circuits: MIM capacitors are widely used in radio frequency (RF) and microwave circuits for applications such as filtering, coupling, and tuning.
• Analog and Mixed-Signal ICs: MIM capacitors find applications in analog and mixed-signal integrated circuits for decoupling, filtering, and energy storage.
• High-Frequency Systems: Due to their stable capacitance characteristics, MIM capacitors are suitable for high-frequency systems where precise capacitance values are required.

MIM capacitors offer stable capacitance performance and high insulation resistance, making them valuable components in various electronic circuits and systems, especially those operating at high frequencies or demanding reliable capacitance stability.

MOM capacitor

Metal-Oxide-Metal (MOM) capacitors are a specific type of capacitor composed of two metal layers separated by an insulating oxide layer. Here is an overview of MOM capacitors, including their structure, operation, advantages, disadvantages, and applications:

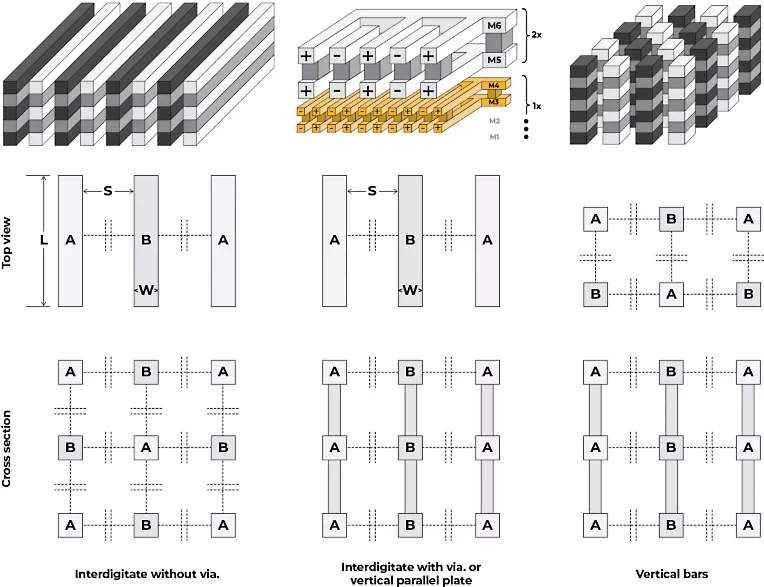

Structure of MOM Capacitors:

• Metal Layers: MOM capacitors consist of two metal layers that serve as the capacitor's electrodes. Common metals used for these layers include aluminum, copper, or other conductive materials.
• Oxide Layer: The metal layers are separated by an insulating oxide layer, such as aluminum oxide (Al2O3) or other oxide materials which act as the dielectric material.

Principle of Operation:

• Capacitance: In MOM capacitors, capacitance is created by the presence of the dielectric oxide layer between the metal electrodes. The oxide layer prevents direct electrical contact between the metal layers, allowing charge to accumulate on the electrodes.
• Dielectric Properties: The properties of the oxide layer, such as its thickness and dielectric constant, determine the capacitance value and the overall performance of the capacitor.
• Charge Storage: When a voltage is applied across the metal electrodes, charge accumulates on the electrodes and induces an electric field in the oxide layer, leading to energy storage.

Advantages of MOM Capacitors:

• Simple Structure: MOM capacitors have a relatively simple structure, making them easy to fabricate and integrate into electronic circuits.
• High Capacitance Density: MOM capacitors can offer high capacitance density, allowing for the storage of significant amounts of electric charge in a compact size.
• Suitable for RF Applications: MOM capacitors are commonly used in radio frequency (RF) and microwave applications due to their performance characteristics.

Disadvantages of MOM Capacitors:

• Limited Stability: MOM capacitors may have limited stability in terms of capacitance value over time and temperature changes compared to other capacitor types.
• Breakdown Voltage: They may be vulnerable to breakdown under high voltage conditions, limiting their use in high-voltage applications.
• Higher Losses: MOM capacitors can exhibit higher losses compared to some other types of capacitors, impacting their efficiency.

Applications of MOM Capacitors:

• RF and Microwave Circuits: MOM capacitors are frequently used in RF and microwave circuits for applications like filtering, tuning, and impedance matching.
• Signal Coupling: They can be utilized for signal coupling and DC blocking in various electronic circuits.
• Energy Storage: MOM capacitors can store energy in electronic systems and are found in power supplies and voltage regulation circuits.

MOM capacitors provide a simple and effective means of storing energy in electronic circuits, particularly in applications where high capacitance density and compact form factors are important. Their use is common in RF and microwave systems but may have limitations in terms of stability and voltage handling compared to other capacitor types.

MOS capacitor

A Metal-Oxide-Semiconductor (MOS) capacitor is a type of capacitor that consists of a metal electrode, an insulating oxide layer, and a semiconductor. Here is an overview of MOS capacitors, including their structure, operation, advantages, disadvantages, and applications:

Structure of MOS Capacitors:

• Metal Electrode (Gate): The metal electrode, often referred to as the gate, is positioned on top of the insulating oxide layer.
• Insulating Oxide Layer: The insulating oxide layer, typically made of silicon dioxide (SiO2), separates the metal gate from the semiconductor substrate.
• Semiconductor Substrate: The semiconductor substrate, usually silicon, serves as one of the capacitor electrodes.

Principle of Operation:

• Capacitance: MOS capacitors store charge by inducing an electric field across the insulating oxide layer between the metal gate and semiconductor substrate.
• Oxide Layer as Dielectric: The oxide layer acts as the dielectric material, enabling the storage of charge and the formation of a capacitance.
• Charge Accumulation: When a voltage is applied to the gate electrode, it creates an electric field across the oxide layer, causing charge carriers (electrons or holes) to accumulate at the semiconductor-oxide interface.

Advantages of MOS Capacitors:

• Controlled Capacitance: MOS capacitors offer precise control over capacitance by adjusting the voltage applied to the gate electrode.
• Compatibility with IC Fabrication: MOS capacitors are integral components of integrated circuits (ICs) and are easily integrated into semiconductor devices.
• Low Leakage Currents: MOS capacitors typically exhibit low leakage currents, ensuring efficient charge storage.

Disadvantages of MOS Capacitors:

• Small Capacitance Values: MOS capacitors may have smaller capacitance values compared to other capacitor types, limiting their application in high-capacitance requirements.
• Leakage Current Sensitivity: MOS capacitors can be sensitive to leakage currents, especially at high temperatures or under high voltages.
• Temperature Sensitivity: Capacitance values of MOS capacitors can be affected by temperature variations, impacting performance in certain applications.

Applications of MOS Capacitors:

• Integrated Circuits: MOS capacitors are fundamental components used in the construction of MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) and other semiconductor devices.
• Dynamic Random-Access Memory (DRAM): MOS capacitors play a crucial role in DRAM cells for storing charge and information.
• Voltage-Controlled Capacitors: MOS capacitors can be utilized in variable or tunable capacitor applications where capacitance can be adjusted by varying the gate voltage.

MOS capacitors are essential components in semiconductor technology and play a key role in the operation of MOSFETs and integrated circuits. They provide precise control over capacitance and are widely used in various electronic devices and systems where compact size, low leakage currents, and compatibility with semiconductor fabrication processes are essential.

Comparison of MIM, MOM, and MOS capacitors

Here is a comparison of Metal-Insulator-Metal (MIM), Metal-Oxide-Metal (MOM), and Metal-Oxide-Semiconductor (MOS) capacitors based on various factors:

Structure:

• MIM Capacitors: Two metal electrodes separated by an insulating layer (insulator).
• MOM Capacitors: Two metal electrodes separated by an oxide layer, serving as the dielectric.
• MOS Capacitors: Metal electrode (gate), insulating oxide layer, and a semiconductor substrate.

Principle of Operation:

• MIM Capacitors: Capacitance generated between metal electrodes via the insulating layer.
• MOM Capacitors: Capacitance formed between metal electrodes through the oxide layer, acting as the dielectric.
• MOS Capacitors: Charge storage facilitated by inducing an electric field across the oxide layer between the metal gate and semiconductor substrate.

Advantages:

• MIM Capacitors:
  • Stable capacitance over a wide range of frequencies and temperatures.
  • High insulation resistance suitable for high-frequency applications.
• MOM Capacitors:
  • Simple structure, easy to fabricate.
  • High capacitance density in compact sizes.
• MOS Capacitors:
  • Precision control over capacitance by adjusting gate voltage.
  • Integral components of integrated circuits with low leakage currents.

Disadvantages:

• MIM Capacitors:
  • May have limitations in achieving high capacitance density.
  • Process sensitivity and fabrication complexity depending on insulating material.
• MOM Capacitors:
  • Limited stability in capacitance over time and temperature changes.
  • Vulnerable to breakdown under high voltage conditions.
• MOS Capacitors:
  • Smaller capacitance values compared to some capacitor types.
  • Sensitivity to leakage currents and temperature variations.

Applications:

• MIM Capacitors:
  • RF and microwave circuits for filtering, coupling, and tuning.
  • Analog and mixed-signal integrated circuits.
• MOM Capacitors:
  • RF and microwave circuits for high-frequency applications.
  • Signal coupling and blocking in electronic circuits.
• MOS Capacitors:
  • Integral components of MOSFETs and DRAM cells in ICs.
  • Used in tunable capacitor applications where capacitance can be adjusted by varying gate voltage.

Understanding the differences and characteristics of MIM, MOM, and MOS capacitors can help in selecting the most appropriate capacitor type for specific electronic applications based on requirements such as capacitance stability, voltage handling, and frequency response. Each type has its strengths and limitations, making them suitable for various applications in the field of electronics and semiconductor technology.
