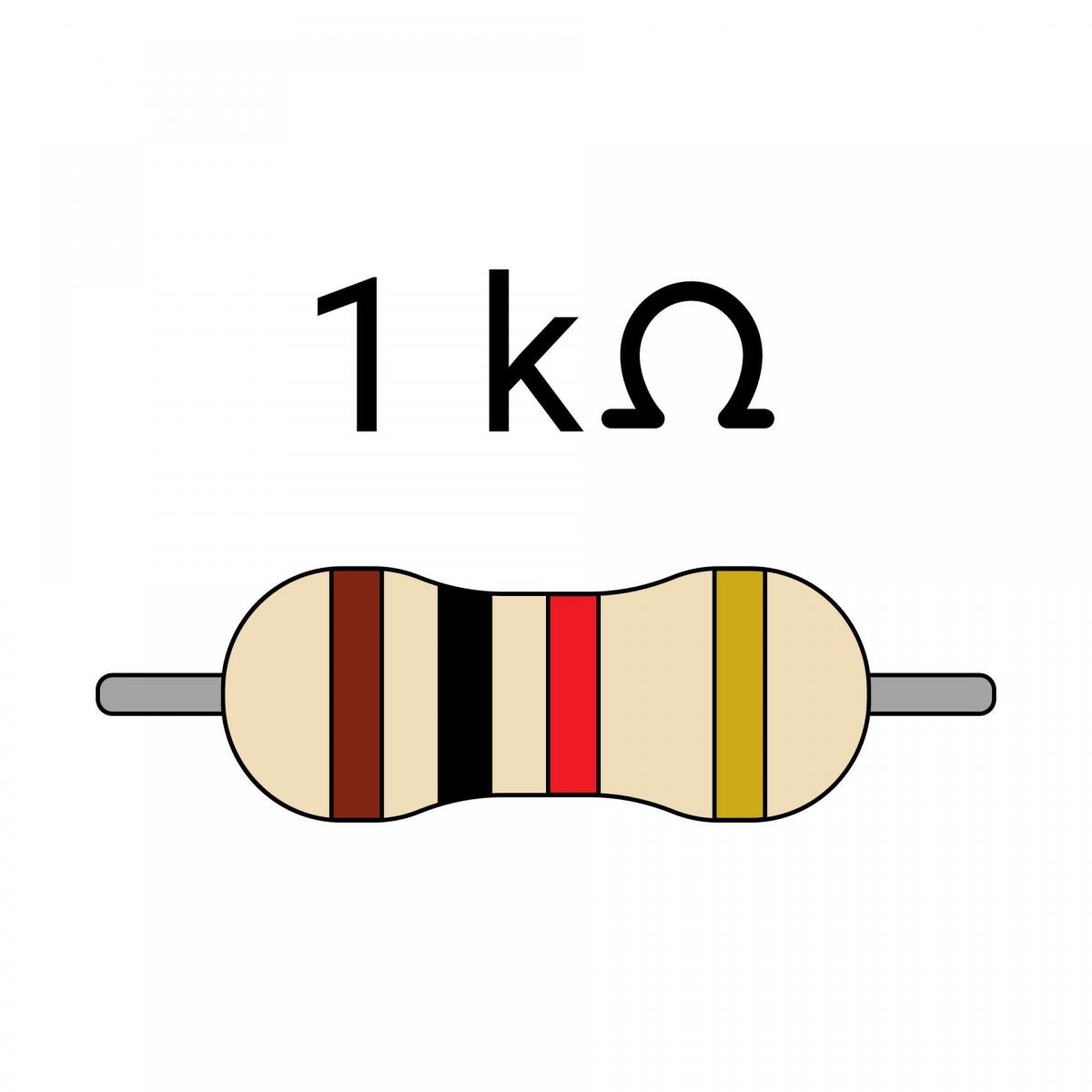

What is a 1k Resistor?



A 1k resistor refers to a resistor with a resistance value of 1 kilohm, which is equal to 1000 ohms. The "k" in "1k" stands for "kilo," which represents a factor of 1000. Resistors are electronic components designed to provide a specific amount of resistance to the electrical current passing through them. The 1k resistor, therefore, limits the current flow as per Ohm's law, where voltage equals current multiplied by resistance (V=IR).

In practical terms, a 1k resistor would limit the current flow to a greater extent than, say, a 100-ohm resistor, assuming the same voltage is applied across both. These resistors are widely used in electronic circuits for purposes such as voltage division, current limiting, and biasing in transistors and integrated circuits.

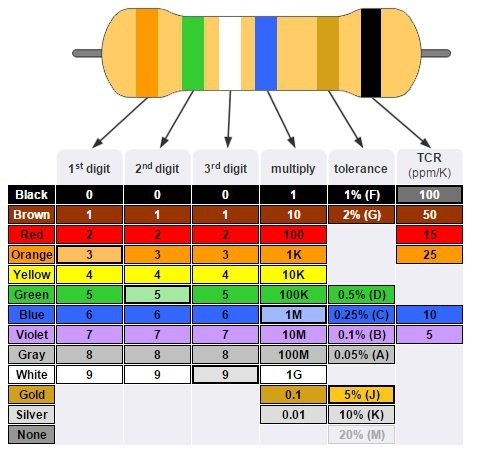

1k Resistor Color Code

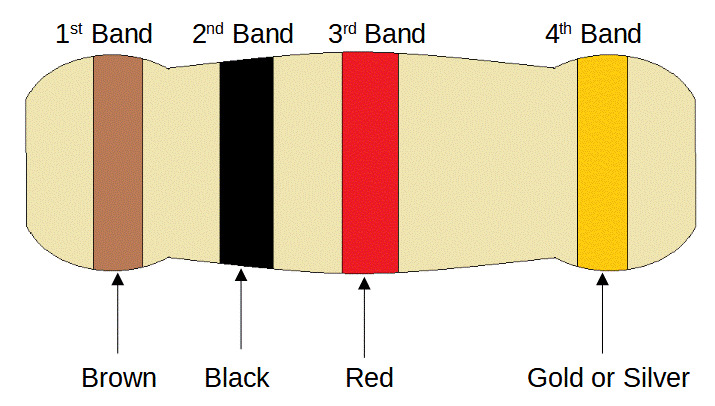

The color code for a 1k ohm resistor is as follows:

  • The first band represents the first significant digit, which is brown.
  • The second band represents the second significant digit, which is black.
  • The third band represents the multiplier, which is red, indicating 10^2.
  • The fourth band represents the tolerance, which is gold, indicating +/- 5%.

So, a 1k ohm resistor would have the color bands brown, black, red, and gold.



Applications of 1k Resistor

1k ohm resistors have various applications in electronics and electrical circuits due to their ability to control current flow. Some common applications include:

  1. Voltage Dividers: Used in voltage divider circuits for providing a variable voltage output based on the input voltage, which is widely used in sensors, feedback systems, and biasing circuits.

  2. Pull-Up and Pull-Down Resistors: In digital electronics, 1k resistors are often used as pull-up or pull-down resistors to ensure that inputs to devices are in a known state when not being actively driven.

  3. LED Current Limiting: 1k resistors are employed to limit current flow in Light Emitting Diodes (LEDs) to prevent them from burning out due to excessive current.

  4. Biasing Transistors: They are used as part of transistor biasing circuits to set the operating point of transistors.

  5. Filtering and Signal Conditioning: In signal conditioning circuits and low-pass filtering circuits, 1k resistors are commonly used to interface with sensors and remove high-frequency noise from signals.

  6. Timer Circuits: In combination with capacitors, 1k resistors are used to control the timing in simple timer circuits.

  7. Op-Amp Circuits: They are used in operational amplifier (op-amp) circuits for various signal conditioning and filtering applications.

  8. Voltage References and Regulators: In conjunction with other components, 1k resistors are used to set reference voltages and currents in voltage regulators and references.

These applications demonstrate the versatility of 1k resistors in numerous electronic and electrical systems.



What is the power rating of a typical 1k resistor?

The power rating of a typical 1k resistor can vary depending on the specific resistor, its construction, and intended application. However, for standard through-hole axial resistors, commonly used in electronics, a typical power rating for a 1k resistor can be 1/4 watt, 1/2 watt, or 1 watt.

1/4W (0.25W) resistors are commonly used in low-power applications, while 1/2W (0.5W) and 1W resistors are utilized when higher power dissipation is required, such as in power supplies or other higher power circuitry.

It's important to choose a resistor with a power rating that exceeds the maximum power that will be dissipated in the resistor under normal operating conditions to ensure long-term reliability and to prevent overheating or failure.

Can a 1k resistor be used to limit the current in an LED circuit powered by a 9V battery?



Yes, a 1k resistor can be used to limit the current in an LED circuit powered by a 9V battery. When using a resistor to limit the current in an LED circuit, it's important to calculate the appropriate resistance to ensure that the LED operates within its safe current range.

To determine the appropriate resistor value, you can use Ohm's Law, which states that voltage equals current multiplied by resistance (V=IR). For an LED circuit powered by a 9V battery, assuming the typical forward voltage drop of an LED is around 2V, you would subtract the LED's forward voltage from the supply voltage to find the voltage across the resistor:

[ V_{\text{resistor}} = V_{\text{supply}} - V_{\text{LED}} = 9V - 2V = 7V ]

Next, you need to choose a resistor value to limit the current to a safe level. The typical operating current for an LED is often between 5mA to 20mA. To calculate the resistance needed for a current of, say, 10mA (0.01A), you can use Ohm's Law:

[ R = \frac{V_{\text{resistor}}}{I} = \frac{7V}{0.01A} = 700\Omega ]

Now, if you use a 1k resistor (1000Ω), the calculated current would be:

[ I = \frac{V_{\text{resistor}}}{R} = \frac{7V}{1000\Omega} = 0.007A = 7mA ]

For the given scenario, a 1k resistor will limit the current to approximately 7mA, which is within the safe operating range for most standard LEDs. Therefore, yes, you can use a 1k resistor to limit the current in an LED circuit powered by a 9V battery. Always ensure to calculate carefully to stay within safe operating parameters for your specific LED.

How much current will flow through a 1k resistor in a circuit with a 5V power supply?

To calculate the current that will flow through a 1k resistor in a circuit with a 5V power supply, you can use Ohm's Law, which states that current (I) is equal to voltage (V) divided by resistance (R). The formula can be expressed as:

[ I = \frac{V}{R} ]

Where:

  • I = Current in Amperes (A)
  • V = Voltage in Volts (V)
  • R = Resistance in Ohms (Ω)

Using the provided values, with a 5V power supply and a 1k (1000Ω) resistor:

[ I = \frac{5V}{1000\Omega} ] [ I = 0.005A ]

So, in a circuit with a 5V power supply and a 1k resistor, a current of 0.005 amperes or 5 milliamperes (5mA) will flow through the resistor.

What is the difference between 1K and 10K resistors?

The primary difference between 1K and 10K resistors lies in their resistance values. "1K" denotes a 1 kilohm resistor, which equates to 1000 ohms, while "10K" represents a 10 kilohm resistor, which corresponds to 10,000 ohms. This means that the 10K resistor has a tenfold higher resistance compared to the 1K resistor.

In practical usage, this difference in resistance values leads to distinct applications:

  1. Voltage Division: 1K resistors are often used in voltage dividers, allowing for a higher current flow and thus a different voltage drop than 10K resistors when used in the same configuration.

  2. Current Limiting: 1K resistors provide less resistance compared to 10K resistors, so they allow more current to flow for a given voltage, making them more suitable for applications where higher current flow is needed.

  3. Sensitivity: In sensor and feedback applications, the choice of resistor value impacts the sensitivity of the circuit. Lower resistance provides higher sensitivity for a given change in input.

  4. Biasing Circuits: In biasing circuits for transistors and integrated circuits, the choice of resistor value affects the operating point of the device. Lower resistance provides different biasing configurations compared to higher resistance values.

In summary, the main difference between 1K and 10K resistors is their resistance values, leading to different levels of current flow, voltage drop, and sensitivity in various electronic applications.
