STTH1512G STMicroelectronics DIODE GEN PURP 1.2KV 15A D2PAK

2024-02-01

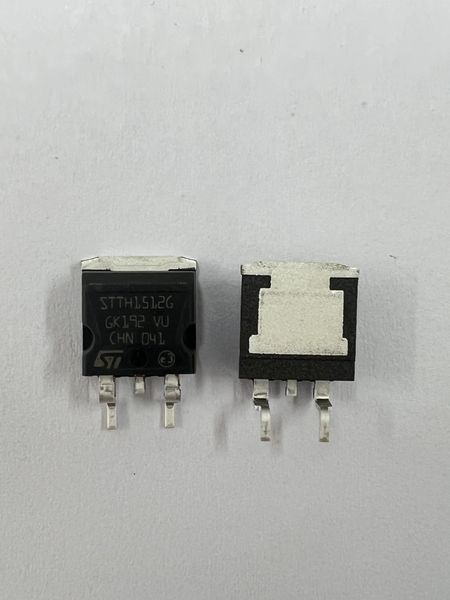

The STTH1512G is a diode manufactured by STMicroelectronics. Here is some information about its configuration and characteristics:

STTH1512G

Configuration: The STTH1512G diode is packaged in a D2PAK (TO-263) package. The D2PAK package is a surface-mount package that allows for easy mounting and efficient heat dissipation.

Characteristics: The STTH1512G diode is designed for general-purpose applications and has the following characteristics:

  1. Voltage Rating: It has a voltage rating of 1.2kV (1,200 volts), indicating the maximum voltage the diode can handle.
  2. Current Rating: The diode has a current rating of 15A, which represents the maximum current the diode can safely handle.
  3. Fast Switching: The STTH1512G diode is designed for fast switching, allowing for efficient rectification or freewheeling in various applications.
  4. Low Forward Voltage Drop: The diode exhibits a low forward voltage drop, reducing power losses and improving efficiency.
  5. Avalanche Rated: It is designed to handle high-energy transient events, making it suitable for applications with inductive loads or where switching transients occur.
  6. Reverse Recovery Time (trr): The diode has a low reverse recovery time, which reduces switching losses and enhances overall performance.

Application Field: The STTH1512G diode can be used in various applications, including but not limited to:

  1. Power Supplies: It can be used in power supply circuits for rectification or output smoothing, ensuring efficient conversion of AC to DC power.
  2. Motor Control: The diode can be employed in motor control circuits, such as inverter drives or motor braking circuits, to handle flyback or regeneration conditions.
  3. Renewable Energy Systems: It is suitable for use in solar inverters, wind turbine systems, or any renewable energy applications that require rectification and fast switching capabilities.
  4. Industrial Applications: The diode can be used in various industrial applications, including welding equipment, UPS systems, and power factor correction circuits.
  5. Automotive Electronics: It is suitable for automotive applications such as electric vehicles, hybrid electric vehicles, and automotive charging systems.

Please note that the information above provides a general overview of the STTH1512G diode. For detailed specifications, voltage ratings, current ratings, and application-specific guidelines, it is recommended to refer to the official datasheet and technical documentation provided by STMicroelectronics for this particular component.
