The S8050 and BC547 are both NPN bipolar junction transistors (BJTs) commonly used in low-power amplification and switching applications. While they have some similarities, there are notable differences between the S8050 and BC547. Let's explore these differences and similarities:
S8050: The S8050 is an NPN transistor with the following characteristics:
-
Maximum Collector Current (IC): The S8050 typically has a maximum collector current rating of 700 mA (milliamperes). This rating determines the maximum current allowed to flow through the transistor's collector terminal without causing damage.
-
Maximum Collector-Emitter Voltage (VCEO): The S8050 generally has a maximum collector-emitter voltage rating of 40 volts. It is important to ensure that the voltage across the collector-emitter junction does not exceed this limit to prevent potential transistor failure.
-
Current Gain (hFE or β): The current gain of the S8050 transistor typically ranges from 120 to 800. This parameter denotes the amplification capability of the transistor, representing the ratio of the collector current (IC) to the base current (IB).
Ratings & Characteristics Comparison:
| Ratings & Characteristics | S8050 | BC547 |
|---|---|---|
| Collector-Emitter Voltage (Vceo) | 25V | 45V |
| Collector Current (Ic) | 1500mA | 100mA |
| Total Device Dissipation (PD) | 1000mW | 625mW |
| DC Current Gain (hFE) | 85 To 300 | 110 To 800 |
| Frequency (fT) | 100 MHz | 300 MHz |
BC547: The BC547 is also an NPN transistor commonly used in low-power applications. Here are its characteristics:
-
Maximum Collector Current (IC): The BC547 has a maximum collector current rating of 100 mA, which is lower than the S8050's rating of 700 mA.
-
Maximum Collector-Emitter Voltage (VCEO): The BC547 typically has a maximum collector-emitter voltage rating of 45 volts, slightly higher than the S8050's 40 volts.
-
Current Gain (hFE or β): The current gain of the BC547 transistor ranges from 110 to 800, providing a similar amplification capability to the S8050.
Differences:
-
Maximum Collector Current: The S8050 has a higher maximum collector current rating of 700 mA compared to the BC547's 100 mA. This means the S8050 transistor can handle higher current levels.
-
Maximum Collector-Emitter Voltage: The BC547 has a slightly higher maximum collector-emitter voltage rating of 45 volts compared to the S8050's 40 volts. The BC547 can handle slightly higher voltage levels.
-

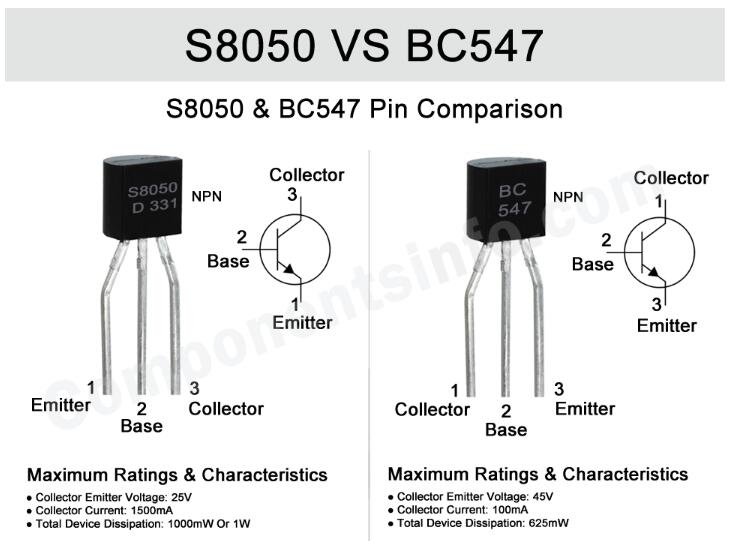

Pin Configuration: The pin configuration of the S8050 and BC547 is different, so they are not pin-to-pin compatible. Pin assignments for each transistor should be referenced from their respective datasheets when designing or replacing them in a circuit.
Similarities:
-
Current Gain (hFE or β): Both the S8050 and BC547 transistors exhibit a similar current gain range of 110 to 800. This similarity indicates a comparable amplification capability in typical applications.
-
NPN Transistor Type: Both the S8050 and BC547 are NPN transistors, meaning they have three layers with a negatively-doped layer sandwiched between two positively-doped layers. This fundamental structure allows them to function as NPN BJTs.
When selecting a transistor for a specific application, it is important to consider these differences and similarities along with the requirements of your circuit. Always consult the datasheets provided by the transistor manufacturers to ensure compatibility and adherence to the required specifications of your circuit.
