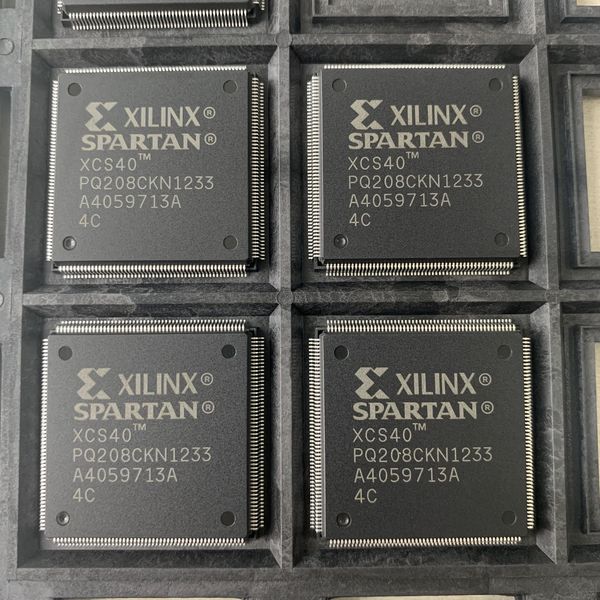

XCS40-4PQ208C:Configuration, function, application field


The XCS40-4PQ208C is a model within the Xilinx Spartan series of Field-Programmable Gate Arrays (FPGAs). Here is some information about the XCS40-4PQ208C FPGA:



  • Model: XCS40-4PQ208C
  • Family: Xilinx Spartan series
  • Package Type: PQ208 (Plastic Quad Flat Pack with 208 pins)
  • Speed Grade: -4 (Speed grade of the device)
  • Technology: FPGA (Field-Programmable Gate Array)
  • DataSheet

    XCS40-4PQ208C PDF


  • The XCS40-4PQ208C FPGA is a reprogrammable integrated circuit that allows users to configure the hardware architecture of the device based on their specific design requirements. FPGAs like the XCS40-4PQ208C consist of configurable logic blocks, interconnects, and I/O blocks that can be programmed to implement various digital circuits and functions.

Application Field:

  • FPGAs such as the XCS40-4PQ208C find application in a variety of industries and fields due to their flexibility. Some common application fields for this type of FPGA include:
    • Embedded Systems: Used in embedded computing systems, IoT devices, control systems, and industrial automation.
    • Communications: Employed in networking equipment, routers, switches, and communication systems for data processing and routing.
    • Digital Signal Processing: Utilized in signal processing applications, image and video processing, audio processing, and digital filtering.
    • Automotive Electronics: Found in automotive control systems, infotainment systems, driver assistance technologies, and automotive networking.
    • Consumer Electronics: Used in devices such as smart TVs, set-top boxes, gaming consoles, and multimedia devices.
    • Industrial Automation: Employed in industrial control systems, robotics, automation equipment, and industrial networking.
    • Medical Devices: Utilized in medical imaging systems, patient monitoring devices, diagnostic equipment, and healthcare technology.

Please note that the specifics regarding features, performance metrics, and capabilities of the XCS40-4PQ208C FPGA may vary. For the most accurate and detailed information, it is recommended to consult the official documentation and datasheets provided by Xilinx for this particular FPGA model.
