Why Do You Need Normally Open Relay? 5 Reasons

In our modern lives, electrical systems surround us, from our homes to our workplaces. Have you ever wondered about the who that enable efficient power control and ensure our safety? In this article, we look for the reasons why normally open relay is vital in our everyday lives, unlocking a world of convenience, reliability, and peace of mind.

What Is a Normally Open Relay

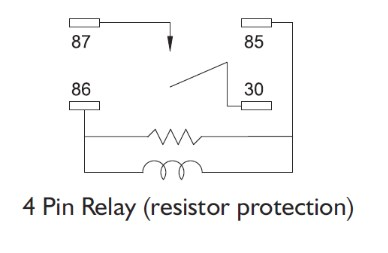

A normally open relay, also known as a "Form A" relay, is a type of relay that is in an open or disconnected state when it is not activated. When a voltage is applied to the relay coil, it activates, causing the contacts to close and allowing current to flow through the circuit.

In simple terms, a normally open relay only allows electricity to flow through the circuit when it is energized or activated. This type of relay is commonly used in various applications where a circuit needs to be completed or disconnected when a specific condition is met or not met.

5 Reasons for Why We Need Normally Open Relay

There are several reasons why normally open relays are used in various applications. Here are five reasons for why we need normally open relays:

1. Safety Interlocks: Normally open relays are commonly used in safety interlock systems where the relay needs to switch off power or disconnect a circuit when a particular condition is not met, ensuring safety in machinery or equipment.

2. Control Applications: In control systems, normally open relays are used to initiate or stop a process when specific criteria are met. For example, a relay could be used to turn on a fan when a certain temperature is reached.

3. Emergency Shutdown Systems: Normally open relays are essential components in emergency shutdown systems where specific conditions trigger the relay to close, stopping the operation of critical processes or equipment in case of emergencies.

4. Alarm Systems: Normally open relays are frequently used in alarm systems. When a sensor detects an abnormal condition, it triggers the relay to close, activating an alarm or notifying the relevant parties.

5. Energy Efficiency: By using normally open relays in energy management systems, unnecessary power consumption can be reduced by disconnecting power to certain devices or systems when they are not in use or required. This helps in saving energy and reducing operational costs.

These are just a few examples of why normally open relays are important and widely used in various applications across different industries.

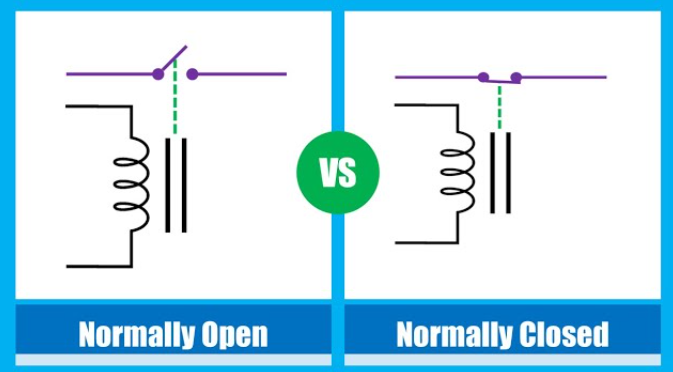

Normally Open VS Normally Closed Relay Biggest Differences

The biggest differences between normally open and normally closed relays lie in their default state and behavior when activated. Here are the key distinctions:

Normally Open Relay:

1. Default State: In a normally open relay, the contacts are open or disconnected in their default state, meaning that there is no electrical connection between the relay's input and output terminals when it is not energized.
2. Functionality: When the relay coil is energized by applying an input voltage, the contacts close, allowing current to flow through the circuit. Normally open relays are used to complete a circuit when activated.
3. Applications: Normally open relays are commonly employed in applications where a connection needs to be established, power needs to be supplied, or an action needs to be triggered when the relay is energized.
4. Safety: Normally open relays are often used in safety-related applications where power needs to be disconnected or a circuit needs to be opened to ensure safety.

Normally Closed Relay:

1. Default State: In a normally closed relay, the contacts are closed or connected in their default state, creating a continuous electrical path between the input and output terminals when the relay is not energized.
2. Functionality: When power is applied to the relay coil, the contacts open, interrupting the current flow through the circuit. Normally closed relays are used to break a circuit when activated.
3. Applications: Normally closed relays are commonly utilized in applications where a connection needs to be broken, power needs to be turned off, or an action needs to cease when the relay is energized.
4. Safety: Normally closed relays might be used in applications where it is crucial to cut power or stop a process when the relay is energized, such as emergency shutdown systems.

In summary, the primary difference between normally open and normally closed relays lies in their default contact states and how they function when activated. Normally open relays complete a circuit when energized, while normally closed relays break a circuit when energized. The choice between these relay types depends on the specific requirements of the application and the desired functionality.

Normally Open Relay Examples and Normally Closed Relay Examples

Here are examples of applications where normally open relays and normally closed relays are commonly used:

Normally Open Relay Examples:

1. Safety Interlocks: In industrial machinery, normally open relays are used for safety interlock systems. For instance, a relay can be used to prevent a machine from operating unless all safety gates are closed.

2. Lighting Control: In lighting systems, normally open relays can be employed to turn on lights when a motion sensor detects movement in a room.

3. Automation: Normally open relays are used in automation systems to trigger actions when specific conditions are met. For example, a relay might be used to start a conveyor belt when a sensor detects an object.

4. Alarm Systems: In security systems, normally open relays are utilized for triggering alarms when a door or window is opened, breaking the connection and activating the alarm.

5. HVAC Systems: Normally open relays can be found in HVAC systems to turn on heating or cooling components when the temperature reaches a certain level.

Normally Closed Relay Examples:

1. Emergency Stop Buttons: In machinery and equipment, normally closed relays are often used in conjunction with emergency stop buttons. Pressing the emergency stop button breaks the circuit, halting the operation.

2. Water Level Control: Normally closed relays can be used in applications like water level control systems. When the water level rises to a specific point, the relay opens, stopping the inflow of water.

3. Motor Control: In some motor control applications, normally closed relays can be used to interrupt power to a motor when certain conditions are met.

4. Temperature Control: Normally closed relays can be utilized in temperature control systems to cut off power to a heater when the temperature exceeds a set limit.

5. Pump Control: In pump control systems, normally closed relays can be employed to stop the operation of a pump when a tank is full, breaking the circuit and preventing overflow.

These examples illustrate the diverse applications of normally open and normally closed relays in various industries and systems, highlighting their roles in enabling different functionalities based on the specific requirements of each application.

FAQ

Does normally open have continuity?

In a normally open relay, there is no continuity or electrical connection between the relay's input and output terminals when the relay is in its default state. The term "normally open" indicates that the contacts are open when the relay is not energized. This means that in its resting state, a normally open relay does not allow current to flow through the circuit because the contacts are open, maintaining an interrupted path until the relay coil is energized.

How to distinguish NO and NC relay?

Distinguishing between a Normally Open (NO) and Normally Closed (NC) relay is crucial for understanding how they function within a system. Here are some common methods to identify the type of relay you're working with:

1. Labeling: Relays are typically labeled or marked with specifications that indicate whether they are Normally Open (NO) or Normally Closed (NC). Look for markings on the relay itself or consult the relay's datasheet or documentation for this information.

2. Visual Inspection: Physically inspect the relay to see if you can determine the relay type. Check the relay's schematic or internal components to identify how the contacts are configured by default.

3. Multimeter Testing: Use a multimeter to test the relay contacts in the absence of power. Measure the continuity between the relay's contact terminals. If the relay is Normally Open (NO), you should not have continuity when the relay is not energized. If the relay is Normally Closed (NC), you should have continuity in the resting state.

4. Consult Documentation: Refer to the manufacturer's datasheet, user manual, or technical documentation for the relay. This documentation typically provides detailed information about the relay's specifications, including whether it is Normally Open or Normally Closed.

5. Operational Testing: Apply power to the relay and observe how it behaves. If the circuit closes or continuity is established when power is applied, it is likely a Normally Open relay. If the circuit opens or breaks when energized, it is likely a Normally Closed relay.

By employing a combination of these methods, you can effectively determine whether a relay is Normally Open (NO) or Normally Closed (NC), enabling you to understand its default state and how it interacts with the circuit in which it is installed.
