TDA7377 Introduction:
The TDA7377 is a dual bridge amplifier integrated circuit designed for car audio applications. It is manufactured by STMicroelectronics and is popular for its compact size, efficiency, and suitability for automotive audio systems. Here is an introduction to the TDA7377 amplifier IC:
-
Main Features:
- Power Output: Typically rated at around 2 x 30 Watts in a 4-Ohm load configuration.
- Operating Voltage: Typically operates from a 12V power supply in automotive systems.
- Bridge-Tied Load Configuration: Suitable for driving speakers directly without the need for an output coupling capacitor.
- Thermal Protection: Includes built-in thermal shutdown protection to prevent damage due to overheating.
- Short-Circuit Protection: Features short-circuit protection to safeguard the amplifier circuitry.
- Low Distortion: Designed for low distortion and high-quality audio output.
-
DataSheet
-
Applications:
- Car Audio Systems: Commonly used in car stereos, amplifiers, and speaker systems.
- Automotive Entertainment: Integrated into entertainment systems in vehicles for high-quality audio output.
- Aftermarket Audio Upgrades: Ideal for upgrading stock audio systems in cars for better sound performance.
TDA7388 Introduction:
The TDA7388 is a quad bridge amplifier IC designed for car radio applications. Also manufactured by STMicroelectronics, the TDA7388 is known for its high output power capability and efficiency. Here is an introduction to the TDA7388 amplifier IC:
-
Main Features:
- Power Output: Typically offers 4 x 41 Watts in a 4-Ohm load configuration.
- Operating Voltage: Typically operates from a 12V power supply in automotive applications.
- Quad Bridge Configuration: Allows for driving up to four speakers in a vehicle stereo system.
- High Efficiency: Designed for high efficiency and low power consumption.
- Integrated Protections: Includes features like thermal shutdown and short-circuit protection for reliable operation.
- Low Noise and Distortion: Provides clear audio output with minimal distortion and noise.
-
DataSheet
-
Applications:
- Car Audio Systems: Used in car amplifiers, radios, and sound systems for high-power audio output.
- In-Vehicle Entertainment: Integrated into vehicle entertainment systems for enhanced audio quality.
- Multispeaker Configurations: Suitable for setups requiring multiple speakers in a car audio environment.
Both the TDA7377 and TDA7388 amplifiers are commonly chosen for automotive audio applications due to their power output, efficiency, integrated protections, and high-quality audio characteristics. These ICs play a significant role in enhancing the audio experience in vehicles and are well-suited for a range of car audio setups and configurations.
Channel Configuration Comparison: TDA7377 vs TDA7388
Both the TDA7377 and TDA7388 are integrated circuit amplifiers commonly used in automotive audio systems. Here's how they differ in terms of their channel configurations:
TDA7377 Channel Configuration:
- Number of Channels: The TDA7377 is a dual bridge amplifier.
- Output Channels: It features 2 bridge-tied load (BTL) output channels.
- Typical Configuration: Designed to drive two speakers or channels in a stereo setup.
- Output Power: Typically capable of delivering 2 x 30 Watts of power in a 4-Ohm load configuration.
TDA7388 Channel Configuration:
- Number of Channels: The TDA7388 is a quad bridge amplifier.
- Output Channels: It includes 4 bridge-tied load (BTL) output channels.
- Typical Configuration: Designed to drive up to four speakers or channels.
- Output Power: Typically offers 4 x 41 Watts of power in a 4-Ohm load configuration.
- Multi-Channel Support: Suitable for systems requiring multiple audio channels, enabling more complex speaker configurations in automotive sound setups.
Comparison:
- TDA7377: Dual bridge amplifier primarily suited for stereo applications, offering 2 output channels for driving two speakers.
- TDA7388: Quad bridge amplifier capable of supporting up to 4 output channels, making it ideal for driving multiple speakers in a car audio system.
Considerations:
- System Requirements: Choose the amplifier based on the number of speakers or channels needed in the audio system.
- Audio Setup: If you require a more complex speaker configuration, the TDA7388 with its 4-channel configuration may be more suitable.
- Power Distribution: Consider the power output requirements and speaker arrangement to determine the best amplifier for your automotive audio needs.
Understanding the channel configurations of the TDA7377 and TDA7388 amplifiers is crucial in selecting the right amplifier for your automotive audio system based on the number of speakers, stereo or multi-channel requirements, and the desired power output per channel.
Main Parameters Comparison: TDA7377 vs TDA7388
When comparing the TDA7377 and TDA7388 amplifier ICs, it's essential to consider various key parameters to understand their differences and suitability for specific applications. Here is a comparison of the main parameters of the TDA7377 and TDA7388:
TDA7377 Main Parameters:
-
Number of Channels:
- TDA7377: Dual bridge amplifier with 2 output channels.
-
Output Power:
- TDA7377: Typically provides 2 x 30 Watts of power into a 4-Ohm load.
-
Operating Voltage:
- TDA7377: Operates from a 12V power supply commonly used in automotive systems.
-
Typical Configuration:
- TDA7377: Designed for stereo applications and driving two speakers in a car audio setup.
-
Bridge Configuration:
- TDA7377: Features bridge-tied load (BTL) output channels.
-
Protection Features:
- TDA7377: May include built-in protections such as thermal shutdown and short-circuit protection.
TDA7388 Main Parameters:
-
Number of Channels:
- TDA7388: Quad bridge amplifier with 4 output channels.
-
Output Power:
- TDA7388: Typically offers 4 x 41 Watts of power into a 4-Ohm load.
-
Operating Voltage:
- TDA7388: Operates from a 12V power supply, common in automotive systems.
-
Typical Configuration:
- TDA7388: Suited for applications requiring multiple channels, supporting up to four speakers.
-
Bridge Configuration:
- TDA7388: Utilizes bridge-tied load (BTL) output channels for enhanced audio performance.
-
Protection Features:
- TDA7388: Likely incorporates protection mechanisms like thermal shutdown and short-circuit protection for reliable operation.
Comparison and Considerations:
-
Output Channels: TDA7377 is a dual-channel amplifier, while TDA7388 offers four output channels, making it suitable for more complex speaker configurations.
-
Output Power: TDA7388 provides higher power output per channel compared to TDA7377, which can influence the choice based on the required audio levels.
-
Applications: TDA7377 is ideal for stereo applications, while TDA7388 is better suited for systems requiring support for multiple speakers or channels.
-
System Complexity: Choose based on the complexity of the audio system and the number of speakers to be driven simultaneously.
Understanding these key parameters allows you to select the amplifier that best fits your requirements in terms of power output, number of channels, system configuration, and overall performance in automotive audio applications.

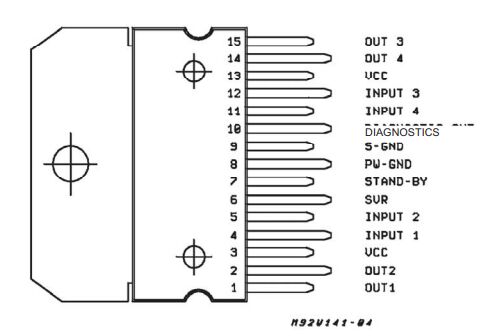

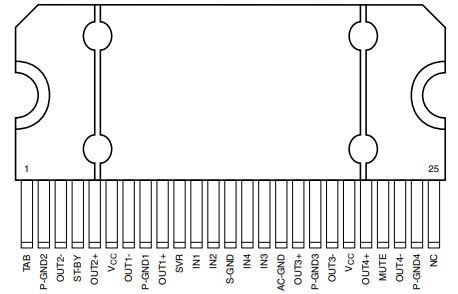

TDA7377 VS TDA7388 connection method
Application Scope Comparison: TDA7377 vs TDA7388
When considering the application scope of the TDA7377 and TDA7388 amplifier ICs, it's essential to understand their capabilities and features to determine their suitability for various audio setups. Here is a comparison of the application scope for the TDA7377 and TDA7388:
TDA7377 Application Scope:
- Stereo Applications: The TDA7377 is well-suited for stereo applications where dual-channel amplification is required.
- Car Audio Systems: Ideal for enhancing the audio quality in car stereos, amplifiers, and speaker setups.
- Speaker Systems: Suitable for driving two speakers in a stereo configuration in automotive environments.
- Aftermarket Upgrades: Commonly used for upgrading stock car audio systems to achieve better sound performance.
- 12V Systems: Operates efficiently with a 12V power supply typically found in automotive setups.
TDA7388 Application Scope:
- Multichannel Configurations: The TDA7388 is designed for applications requiring multiple output channels.
- Quad Speaker Systems: Suited for driving up to four speakers in a vehicle's audio system.
- Car Radio Systems: Integrated into car radios and entertainment systems for high-power audio output.
- Complex Audio Configurations: Ideal for setups that demand more channels for better sound distribution.
- Automotive Audio Upgrades: Suitable for enhancing the audio experience in vehicles through upgraded audio systems.
Comparison and Considerations:
- System Complexity: TDA7377 is suitable for simpler stereo setups, while TDA7388 is ideal for more complex multichannel configurations.
- Number of Speakers: TDA7377 is geared towards driving two speakers in a stereo arrangement, whereas TDA7388 supports up to four speakers.
- Power Requirements: Choose based on the power output needed for the audio system and the number of speakers to be driven simultaneously.
- Application Flexibility: Consider the flexibility required in the audio setup when determining the suitable amplifier IC.
Both the TDA7377 and TDA7388 amplifiers have distinct application scopes based on their channel configurations, power output, and compatibility with different audio setups. Understanding these differences helps in selecting the appropriate amplifier for your specific automotive audio requirements, whether for stereo applications or complex multichannel configurations in car audio systems.
Can TDA7377 replace TDA7388?
While both the TDA7377 and TDA7388 are amplifier ICs designed for automotive audio applications, they have different channel configurations and power outputs. Here are some considerations if you are thinking about replacing one with the other:
TDA7377 vs. TDA7388: Considerations for Replacement:
-
Channel Configuration:
- The TDA7377 is a dual bridge amplifier with 2 output channels, while the TDA7388 is a quad bridge amplifier with 4 output channels.
- If your system requires support for only two speakers and a stereo setup, the TDA7377 can be a suitable replacement for the TDA7388. However, if you need to drive more than two speakers, the TDA7388's four channels are necessary.
-
Power Output:
- The TDA7377 typically delivers lower power output (2 x 30W) compared to the TDA7388 (4 x 41W).
- Consider the power requirements of your system. If the power output of the TDA7377 meets your needs, it can potentially replace the TDA7388 in applications where lower power is acceptable.
-
System Complexity:
- If your system is designed for a straightforward stereo setup with two speakers, the TDA7377 can serve as a replacement for the TDA7388 without issues.
- For more complex systems with four speakers or requiring multichannel configurations, the TDA7388 is the more suitable choice due to its additional output channels.
-
Wiring and Circuit Compatibility:
- Ensure that the pin configurations, input and output requirements, as well as any circuitry changes needed for the replacement, are taken into account.
- The physical layout of the components on the circuit board may also need to be considered when replacing one amplifier with the other.
-
Audio Quality Requirements:
- Consider the potential impact on audio quality when replacing one amplifier with another. Ensure that the replacement IC meets the required audio performance standards of your system.
Conclusion:
In summary, while the TDA7377 and TDA7388 can serve similar automotive audio applications, their differences in channel configuration, power output, and application scope should be carefully evaluated before considering one as a replacement for the other. If the system requirements align with the capabilities of the TDA7377 in terms of channels and power, it can potentially replace the TDA7388 in specific setups. However, for more complex configurations and higher power demands, the TDA7388 would be the preferred choice.

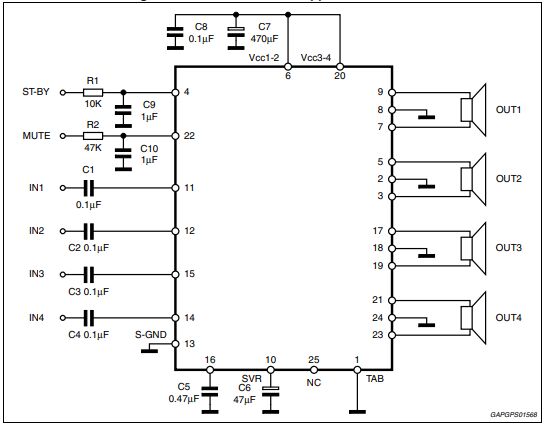

TDA7377 VS TDA7388 circuit diagram
TDA7377
TDA7388
Frequently Asked Questions
1.What are the alternative models of TDA7377?
Models similar to TDA7377 in channel configuration, power output and application range: TDA7375, TDA2030, TDA7379, LM386, TDA1554
2.What are the alternative models of TDA7388?
Models similar to TDA7388 in terms of channel configuration and application range: TDA7384, TDA7385, TDA7375, TDA7389, TDA8563AQ
3.What is the input voltage of TDA7388?
The operating voltage of TDA7388 amplifier IC is 18V. For this type of amplifier IC, it is recommended to use SMPS power supply. 18VDC SMPS power supply rated at 5A.
