Type J Thermocouple Wire: Everything You Need to Know


The world of temperature measurement can be intricate, but understanding the basics of thermocouple wire makes it a whole lot easier. In this guide, we'll delve into the specifics of Type J thermocouple wire, a widely used option for accurate and reliable temperature sensing.

What is Type J Thermocouple Wire

Type J thermocouple wire is a type of thermocouple made from a specific combination of materials that generates a voltage in response to a temperature difference between its ends. The Type J thermocouple is composed of two different types of metal wires - Iron (Fe) and Constantan (a Copper-Nickel alloy with a specific composition).

Here are some key characteristics of Type J thermocouple wire:

  1. Temperature Range: Type J thermocouples are commonly used in a temperature range from about -210°C to +1200°C (-346°F to 2192°F).

  2. Accuracy: Type J thermocouples have a good level of accuracy. However, they are less accurate at higher temperatures due to oxidation of the iron wire.

  3. Applications: Type J thermocouples are suitable for use in vacuum, inert, oxidizing, or reducing atmospheres. They are commonly used in various industrial applications, such as temperature measurement in ovens, furnaces, and other industrial processes.

  4. Advantages: Type J thermocouples exhibit good sensitivity and are typically less expensive than some other types of thermocouples. They also have a relatively wide operating temperature range.

  5. Disadvantages: The main disadvantage of Type J thermocouples is that they are prone to drift in certain applications due to the oxidation of the iron wire, especially at higher temperatures.

Type J thermocouples are widely used for temperature measurement in various industries, and their specific properties make them suitable for a range of applications where moderate temperature accuracy is required.

Type J Thermocouple Wire Specifications

Type J thermocouples are made from specific alloys and have defined specifications in terms of their composition, temperature range, accuracy, and applications. Here are some common specifications for Type J thermocouple wire:

  1. Alloy Composition: Type J thermocouples are made from Iron (positive leg) and Constantan (negative leg). Constantan is a Copper-Nickel alloy containing approximately 55% Copper and 45% Nickel.

  2. Temperature Range: The operating temperature range for Type J thermocouples is typically from -210°C to +1200°C (-346°F to 2192°F).

  3. Nominal EMF: The nominal voltage output for a Type J thermocouple at 0°C (32°F) is approximately 0mV. The voltage output changes linearly with temperature difference.

  4. Accuracy: Type J thermocouples have a standard accuracy grade according to ASTM E230 or IEC 60584-2. The accuracy varies based on the temperature range, with better accuracy at lower temperatures compared to higher temperatures.

  5. Wire Diameter: Type J thermocouple wires are available in various diameters, typically ranging from 0.05 mm to 3.0 mm or more, depending on the specific application requirements.

  6. Insulation: The wires may have insulation or coating materials to provide electrical insulation and protection. Common insulation materials include PTFE, PVC, fiberglass, and ceramic.

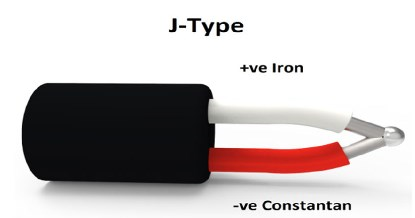

  7. Color Coding: In North America, Type J thermocouple wires are typically color-coded with a white wire representing the positive lead (Iron) and a red wire representing the negative lead (Constantan).

  8. Response Time: Type J thermocouples have a relatively fast response time, making them suitable for applications where rapid temperature changes need to be monitored.

  9. Drift: Type J thermocouples can experience drift over time, especially at higher temperatures, due to the oxidation of the Iron wire. Periodic calibration and maintenance may be necessary to ensure accuracy.

  10. Applications: Type J thermocouples are commonly used in various industrial applications, such as heat treating, food industry, pharmaceuticals, and HVAC systems.

These specifications are important to consider when selecting and using Type J thermocouple wire for temperature sensing and measurement applications across a wide range of industries and environments.

What Wires Are Used in Thermocouples

Thermocouples utilize specialized wires made from specific metal alloys to generate a voltage in response to temperature variations. The choice of wire material depends on factors like the desired temperature range, accuracy requirements, and environmental conditions. Here are some common types of wires used in thermocouples:

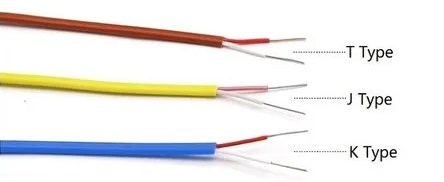

  1. Type K: Type K thermocouples use Chromel (an alloy of Nickel and Chromium) for the positive leg and Alumel (an alloy of Nickel, Aluminum, and Manganese) for the negative leg. Type K thermocouples are among the most widely used thermocouples due to their wide temperature range (-200°C to +1350°C) and good sensitivity.

  2. Type T: Type T thermocouples use Copper for the positive leg and Constantan for the negative leg. They are suitable for low-temperature applications and have a temperature range of -200°C to +350°C.

  3. Type E: Type E thermocouples use Chromel for the positive leg and Constantan for the negative leg. They have a temperature range of -200°C to +900°C and are known for their high sensitivity.

  4. Type J: Type J thermocouples are made from Iron for the positive leg and Constantan for the negative leg. They typically operate in a temperature range of -210°C to +1200°C.

  5. Type N: Type N thermocouples use Nicrosil (Nickel-Chromium-Silicon) for the positive leg and Nisil (Nickel-Silicon) for the negative leg. They offer a temperature range of -200°C to +1300°C and good resistance to oxidation.

  6. Type S and Type R: Type S and Type R thermocouples use Platinum-Rhodium alloys for their wires and are commonly used for high-temperature applications, with temperature ranges up to around 1600-1768°C.

  7. Type B: Type B thermocouples also use Platinum-Rhodium alloys but have different compositions compared to Type S and R. They are suitable for extremely high-temperature applications, with a temperature range from 0°C to 1820°C.

The selection of the appropriate thermocouple wire is critical to ensure accurate and reliable temperature measurements in various industrial, scientific, and commercial applications. The specific characteristics of each type of thermocouple wire make them suitable for different ranges of temperature and environmental conditions.

Type J thermocouples Wire Applications

Type J thermocouples, which consist of Iron (positive leg) and Constantan (negative leg), find applications across various industries due to their specific properties and temperature range capabilities. Here are some common applications of Type J thermocouple wire:

  1. Industrial Furnaces: Type J thermocouples are frequently used in industrial furnaces for temperature monitoring and control. They can withstand the high temperatures typically encountered in furnace operations.

  2. Heat Treating: Type J thermocouples are utilized in heat treating processes where precise temperature control is essential for treating metal alloys to achieve desired mechanical and physical properties.

  3. Food Industry: Type J thermocouples are employed in various food processing applications such as ovens, kilns, and other cooking processes to monitor and control the temperature for food safety and quality.

  4. Pharmaceutical Industry: In pharmaceutical manufacturing, Type J thermocouples are used to monitor and control temperatures in processes like sterilization, drying, and chemical reactions.

  5. HVAC Systems: Type J thermocouples can be found in heating, ventilation, and air conditioning systems to measure and regulate temperatures in HVAC equipment and control rooms.

  6. Incubators: Type J thermocouples are used in incubators for temperature monitoring in laboratory settings, medical facilities, and poultry farms.

  7. Plastics Processing: Type J thermocouples are applied in plastic processing equipment for accurate temperature control in extruders, injection molding machines, and other processing machinery.

  8. Automotive Industry: Type J thermocouples are used in automotive testing applications for measuring temperatures in engine components, exhaust systems, and other critical areas.

  9. Aerospace Industry: In aerospace applications, Type J thermocouples are utilized for temperature monitoring in aircraft engines, environmental control systems, and other aircraft components.

  10. Research and Development: Type J thermocouples are commonly used in research laboratories for various scientific experiments and studies that require precise temperature measurements.

These are just a few examples of the diverse applications where Type J thermocouple wire is utilized. Type J thermocouples are valued for their good accuracy, sensitivity, and reliability within their specified temperature range, making them suitable for a wide range of industrial, commercial, and scientific purposes.

How Do We Connect a J type Thermocouple Wire

Connecting a Type J thermocouple wire involves ensuring proper connections are made between the thermocouple wires and the measurement or control instruments. Here are the general steps to correctly connect a Type J thermocouple wire:

  1. Prepare the Wires: Strip off a small portion of the insulation at the ends of the Type J thermocouple wires to expose the metal wires.

  2. Identify the Polarity: Type J thermocouples have a positive (Iron) and negative (Constantan) leg. It's crucial to identify which wire is the positive and which is the negative. Typically, the positive leg (Iron) is white and the negative leg (Constantan) is red, following the color-coding conventions, but it's always best to check the manufacturer's specifications to confirm.

  3. Use Correct Connectors: Choose the appropriate connectors based on the type of instrumentation you are connecting the Type J thermocouple to. Common connectors for thermocouples include miniature thermocouple connectors or terminal blocks.

  4. Secure the Connection: Insert the thermocouple wires into the connector slots according to polarity, ensuring that the positive and negative legs are connected correctly.

  5. Secure the Connections: Once the wires are inserted into the connectors, ensure they are securely fastened or tightened to prevent any loose connections that could affect the accuracy of the temperature readings.

  6. Insulate the Connections: After securing the connections, use insulating materials like heat-shrink tubing or ceramic beads to insulate the connection points and prevent any short circuits or interference.

  7. Verification: Before putting the thermocouple into use, it's recommended to verify the connections and integrity of the setup using a multimeter or a thermal calibrator to ensure proper functionality and accuracy.

When connecting Type J thermocouple wires, it's essential to be cautious and follow the correct polarity to ensure accurate temperature measurement readings. Properly connecting the thermocouple wires helps maintain the accuracy and reliability of the temperature monitoring systems in various industrial and scientific applications.

Beyond the Basics

"Beyond the Basics" in the context of connecting a Type J thermocouple wire could involve more advanced techniques or considerations. Here are some additional points to consider for dealing with Type J thermocouples:

  1. Cold Junction Compensation: Type J thermocouples measure the temperature difference between the measuring junction and the reference junction. Cold junction compensation techniques involve compensating for the temperature at the reference junction to ensure accurate temperature measurements.

  2. Specialized Connectors: In high-precision applications, using specialized connectors with proper contacts and materials can help maintain accuracy and reduce signal interference.

  3. Shielding: Implementing proper shielding techniques to minimize electromagnetic interference can be crucial, especially in industrial environments where electrical noise can affect thermocouple readings.

  4. Signal Conditioning: In some cases, signal conditioning equipment may be necessary to amplify, filter, or linearize the thermocouple signal before it is sent to the measuring instrument.

  5. Calibration: Regular calibration of the thermocouple system is essential to ensure accuracy and reliability. Calibrating the thermocouple setup against a known temperature reference helps detect and correct any deviations.

  6. Installation Considerations: Proper installation of the thermocouple is crucial. Ensuring that the thermocouple wires are not subject to mechanical stress, excessive vibration, or temperature gradients can help maintain accurate readings.

  7. Environmental Factors: Consider environmental factors such as temperature fluctuations, humidity, and chemical exposure that could affect the performance and lifespan of the thermocouple. Choosing the appropriate sheathing and protection for the thermocouple wires is important.

  8. Signal Integrity: Maintain good signal integrity by keeping thermocouple wires away from electromagnetic sources, power lines, and other sources of interference that could introduce errors in temperature measurements.

  9. Redundancy: In critical applications, consider implementing redundancy by using multiple thermocouples to cross-check temperature readings and ensure reliability.

  10. Safety Compliance: Ensure that the thermocouple setup complies with safety regulations and standards, especially in industrial applications where safety is paramount.

Implementing these advanced considerations can help optimize the performance, accuracy, and reliability of Type J thermocouple installations in various applications, ranging from industrial processes to scientific research and temperature monitoring systems.
