Tips on Discharging An Air Conditioner Capacitor

2024-02-09

The air conditioner is an indispensable appliance in modern households, providing a comfortable environment and relief from the scorching heat of summer. As an electrical appliance, the AC requires regular maintenance to avoid potential issues.

However, while repairing, we have to replace the AC capacitor which is a more common operation for the AC capacitor. So, how do you discharge an AC capacitor? Before we go deeper into this issue, we’d better study what is an AC capacitor.

What Is An AC Capacitor

An AC capacitor, also known as a run capacitor or a start capacitor, is an electrical component commonly used in air conditioning systems and other electrical appliances to improve the performance of the motor. Here is an overview of what an AC capacitor is and how it functions:

Function:

  1. Starting Torque: In HVAC systems, the capacitor aids in providing the initial torque necessary to start the compressor or fan motor.

  2. Phase-Shifting: The capacitor helps create a phase shift in the motor windings to provide the required magnetic field necessary for the motor to operate efficiently.

  3. Improving Power Factor: Capacitors help in correcting the power factor of the motor, increasing its efficiency and reducing energy consumption.

Types of AC Capacitors:

  1. Start Capacitors: These provide the initial boost needed to start a motor, particularly in single-phase motors.

  2. Run Capacitors: Run capacitors are used to maintain a consistent voltage supply to the motor during operation, improving efficiency and performance.

Signs of a Faulty AC Capacitor:

  1. Hard Starting: Difficulty starting the motor or irregular starts can indicate a faulty capacitor.

  2. Motor Humming or Not Running: If the motor emits a humming noise but does not turn on, it could be a sign of a capacitor issue.

  3. Overheating: Excessive heat near the capacitor or frequent thermal shutdowns are red flags for capacitor problems.

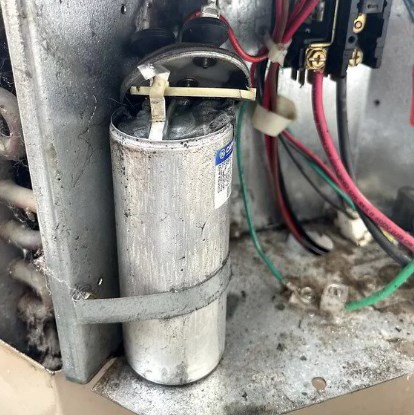

  4. Bulging or Leaking: Physical signs of damage such as bulging, leaks, or a burnt smell suggest a failing capacitor.

Replacement and Maintenance:

  1. It is crucial to replace a faulty capacitor promptly to prevent further damage to the motor.

  2. Capacitors should be checked regularly during routine HVAC maintenance to ensure they are functioning correctly.

  3. When replacing a capacitor, it is essential to match the capacitor's specifications (voltage rating, microfarads, temperature rating) to the original component for proper operation.

AC capacitors play a critical role in the efficient operation of air conditioning systems and other equipment with electric motors. Understanding their function, recognizing signs of failure, and ensuring regular maintenance can help maintain the performance and longevity of HVAC systems and electrical appliances.

Quick Question: Why Do You Discharge An AC capacitor

Discharging an AC capacitor is essential for safety reasons. Capacitors store electrical energy even after the power supply is disconnected, and if not discharged properly, they can present a serious risk of electrical shock. Here's why it's important to discharge an AC capacitor:

  1. Safety Precaution: Capacitors can store a significant amount of charge even when the power is turned off. Discharging the capacitor ensures that there is no residual electrical charge that could potentially cause harm to anyone working on or near the capacitor.

  2. Risk of Electric Shock: Failing to discharge a capacitor before handling it can result in a dangerous electric shock. The stored charge in a capacitor can be enough to cause serious injury or even be fatal if discharged through the body.

  3. Protection of Equipment: Discharging a capacitor before working on a system protects the equipment and components from potential damage. Sudden discharges or accidental short circuits can harm the capacitor, associated components, or the entire system.

  4. Prevention of Sparks: Discharging a capacitor eliminates the risk of sparks that could occur if the stored charge were to discharge suddenly. Sparks can pose a fire hazard, especially in environments with flammable materials.

  5. Maintenance and Service: Technicians and individuals working on electrical equipment, including HVAC systems, should discharge capacitors to safely conduct maintenance, repairs, or replacements without risking injury or damage to the equipment.

In summary, discharging an AC capacitor is a critical safety measure to prevent electric shock, protect equipment, and ensure a safe working environment when handling electrical systems or components. The process should be conducted in adherence to proper safety protocols and guidelines to minimize risks and ensure safe maintenance practices.

How to Discharge An AC Capacitor

Discharging an AC capacitor is a straightforward process that involves safely releasing any stored electrical charge to avoid the risk of electric shock. To discharge an AC capacitor safely, follow these steps:

Tools and Equipment Needed:

  • Insulated screwdriver
  • Insulated gloves
  • Safety goggles
  • Safety precautions and awareness

Steps to Discharge an AC Capacitor:

  1. Turn Off Power: Before working on the capacitor, ensure that the power to the equipment is completely turned off at the circuit breaker or disconnect switch to prevent any incoming power supply.

  2. Identify the Capacitor: Locate the capacitor in the HVAC system or electrical appliance. Capacitors are usually cylindrical in shape and can be found near the motor.

  3. Safety Precautions: Put on insulated gloves and safety goggles to protect yourself from any potential electrical hazards.

  4. Discharge Using a Screwdriver:

    • Take an insulated screwdriver (with a rubber or plastic handle) and touch the metal shaft of the screwdriver to the metal terminals of the capacitor. Ensure that the screwdriver does not touch any other metal parts or components.
    • Hold the screwdriver in place for a few seconds to allow the capacitor to discharge completely.

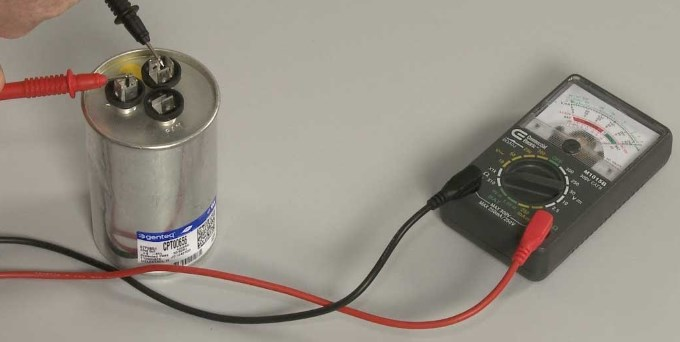

  5. Verify Discharge: Use a voltmeter to verify that the capacitor is fully discharged. Set the voltmeter to the AC voltage setting and carefully touch the probes to the capacitor terminals. If the reading is close to zero, the capacitor is discharged.

  6. Safety Check: After discharging the capacitor, visually inspect it for any signs of damage such as bulging, leaks, or discoloration. Replace the capacitor if it shows any signs of damage.

  7. Proceed with Maintenance: Once the capacitor is safely discharged and verified, you can proceed with any maintenance, repairs, or replacements you need to perform on the HVAC system or electrical appliance.

Additional Tips:

  • Avoid Short Circuits: Do not allow the screwdriver to touch both terminals of the capacitor simultaneously as it can create a short circuit.
  • Discharge Each Terminal: If the capacitor has multiple terminals, discharge each terminal individually to ensure complete discharge.

By following these steps and safety precautions, you can safely discharge an AC capacitor before working on HVAC systems or electrical appliances, reducing the risk of electric shock and ensuring a safe maintenance environment. If you are unsure or uncomfortable performing this task, it is recommended to seek assistance from a qualified technician.

The Dangers of Discharging An AC Capacitor

While discharging an AC capacitor is an essential safety measure, it is crucial to understand and respect the potential dangers involved in the process. Here are some of the risks and dangers associated with discharging an AC capacitor:

  1. Electric Shock: Capacitors store electrical energy, and if not discharged properly, they can pose a significant risk of electric shock. The stored charge can discharge suddenly and deliver a high-voltage shock, which can be dangerous and potentially fatal if it passes through the body.

  2. Burns: In addition to electric shock, a discharge from a capacitor can generate heat, leading to potential burns if the discharge comes into contact with the skin. The heat generated during a sudden discharge can cause injuries, especially if the capacitor is mishandled.

  3. Fire Hazard: Discharging a capacitor improperly can result in sparks, which can be a fire hazard, particularly in environments where flammable materials are present. Sparks generated during the discharge process can ignite nearby combustible materials.

  4. Equipment Damage: A sudden discharge of an AC capacitor can cause damage to the capacitor itself, as well as other electrical components and equipment connected to it. Improper handling during the discharge process can lead to equipment malfunction or failure.

  5. Eye and Hearing Damage: Capacitor discharges can produce bright flashes of light and loud noises. Staring directly at the discharge or being too close to it without proper eye protection or hearing protection can result in eye damage or hearing loss.

  6. Secondary Hazards: Depending on the environment and surrounding conditions, a capacitor discharge can cause secondary hazards such as release of toxic fumes if the capacitor is damaged or contains hazardous materials.

  7. Improper Discharge Methods: Using improper tools or techniques to discharge a capacitor can increase the risks associated with the process. Short circuits, accidental contact with live conductors, or incorrect handling of tools can lead to dangerous situations.

To mitigate these dangers and ensure safe capacitor discharge, it is essential to follow proper safety procedures, use insulated tools, wear appropriate personal protective equipment, and be aware of the risks involved in working with capacitors. If you are unsure or uncomfortable discharging an AC capacitor, it is advisable to seek help from a qualified technician or professional to avoid potential hazards and ensure a safe working environment.

Final Verdict

When dealing with the discharge of an AC capacitor, the final verdict is clear: safety is paramount. Understanding the potential risks and dangers associated with discharging a capacitor is crucial to prevent accidents and injuries. Following proper safety protocols, using insulated tools, wearing appropriate personal protective equipment, and seeking assistance if unsure are essential steps to safeguard yourself and others during the discharge process.

Remember, electric shock, burns, fire hazards, equipment damage, eye and hearing damage, as well as secondary hazards, are real risks if capacitors are not discharged correctly. Prioritize caution, adhere to safety guidelines, and consider seeking professional help if you are uncertain about handling the capacitor discharge procedure. By prioritizing safety and following best practices, you can mitigate the dangers associated with discharging an AC capacitor effectively and ensure a safe working environment.
