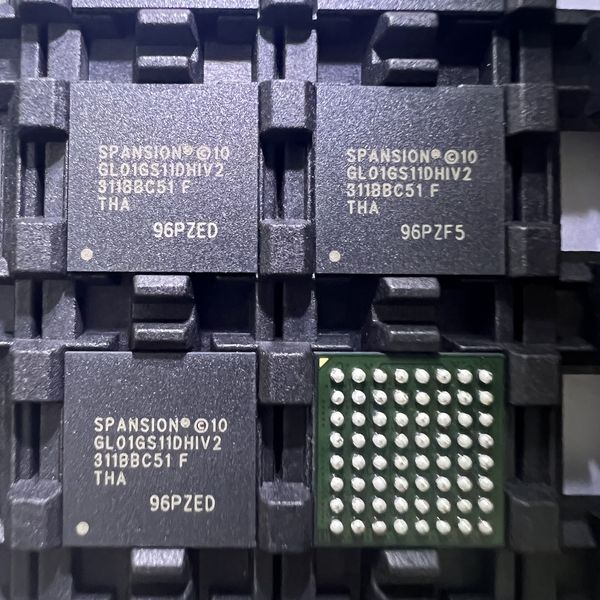

S29GL01GS11DHIV20 Cypress Semiconductor IC FLASH 1GBIT PARALLEL 64FBGA


The product description "S29GL01GS11DHIV20 Cypress Semiconductor IC FLASH 1GBIT PARALLEL 64FBGA" details a specific flash memory integrated circuit manufactured by Cypress Semiconductor. Here is a breakdown of the information provided:



  • Manufacturer: Cypress Semiconductor

  • Part Number: S29GL01GS11DHIV20


  • Memory Type: Flash memory (non-volatile memory that can be electrically erased and reprogrammed)

  • Memory Capacity: 1 Gbit (Gigabit)

  • Interface: Parallel (indicating a parallel data bus for communication)

  • Package Type: 64FBGA (64-ball Fine-pitch Ball Grid Array)

Key Features:

  • Memory Capacity: 1 Gbit - This flash memory IC can store 1 Gigabit of data (equivalent to 128 Megabytes).
  • Interface Type: Parallel - Data is transferred in parallel, allowing for faster data access compared to serial interfaces.
  • Package Type: 64FBGA - The IC is housed in a 64-ball Fine-pitch Ball Grid Array package, a compact and efficient packaging solution.

Main Uses:

  • Embedded Systems: Used in various embedded systems for data storage, firmware storage, and code execution.
  • Consumer Electronics: Found in devices like set-top boxes, printers, routers, and other consumer electronics for storing firmware.
  • Industrial Applications: Ideal for industrial use in applications such as automation, control systems, and data logging.

Working Principle:

  • Flash Memory: This type of memory retains data even when the power is turned off, making it suitable for storing firmware and other essential system data.
  • 1 Gbit Capacity: Provides significant storage space for program storage, data logging, or other applications requiring non-volatile memory.
  • Parallel Interface: The parallel interface allows for faster data transfer compared to serial interfaces, making it suitable for applications requiring high-speed data access.
  • 64FBGA Package: The 64-ball Fine-pitch Ball Grid Array package ensures the compact form factor and efficient layout of the IC for integration into various electronic devices.

The S29GL01GS11DHIV20 flash memory IC from Cypress Semiconductor with 1 Gbit capacity and a parallel interface in a 64-ball FBGA package is well-suited for a wide range of applications requiring non-volatile storage with relatively high data access speeds. If you have any specific inquiries or require further details, please feel free to ask!
