S1M-13-F Diodes DIODE GEN PURP 1KV 1A SMA

The S1M-13-F is a general-purpose rectifier diode manufactured by Diodes Incorporated. Below is an overview of the S1M-13-F diode:

S1M-13-F Diode Overview:

• Manufacturer: Diodes Incorporated
• Part Number: S1M-13-F
• Type: General-Purpose Rectifier Diode
• Package: SMA (DO-214AC)
• Voltage Rating: 1000V
• Current Rating: 1A

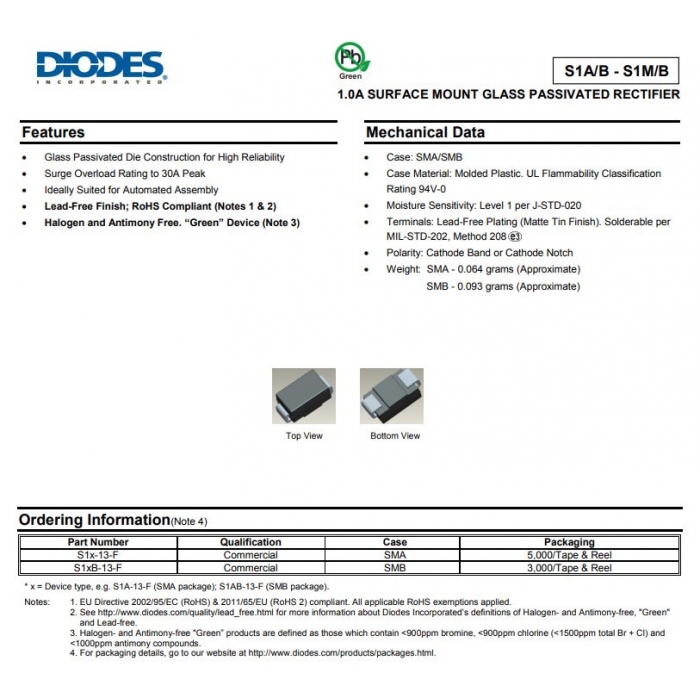

• DataSheet

  S1M-13-F PDF

Key Features:

• General-Purpose Rectifier: Suitable for a wide range of rectification applications.
• Voltage Rating: Capable of withstanding up to 1000V in the reverse direction.
• Current Rating: Designed to handle up to 1A of continuous forward current.
• Package Type: SMA (SMA, also known as DO-214AC) is a surface-mount package for easy PCB mounting.

Applications:

The S1M-13-F diode is commonly used in various electronic circuits for tasks such as:

• Power supplies and voltage rectification.
• Battery chargers and AC/DC converters.
• Inverter circuits and snubber circuits.
• LED lighting applications.
• General-purpose rectification in consumer electronics.

Working Principle:

• The S1M-13-F diode operates as a rectifier, allowing current to flow in one direction while blocking it in the reverse direction.
• It converts alternating current (AC) to direct current (DC) by conducting current when forward-biased.

Suggested Projects:

• Power supply designs for various applications.
• Battery charger circuits.
• LED driver circuits.
• Voltage multiplier circuits.
• Snubber circuits for switching applications.
• Voltage regulation circuits.

Note:

• Refer to the datasheet provided by Diodes Incorporated for detailed specifications, performance curves, and application guidelines specific to the S1M-13-F rectifier diode.
• Ensure that the diode's voltage and current ratings match the requirements of your circuit for safe and efficient operation.

The S1M-13-F rectifier diode from Diodes Incorporated is a versatile component suitable for rectification tasks in diverse electronic systems, offering robust voltage and current handling capabilities in a compact surface-mount package for easy integration into printed circuit boards.
