Our Everyday Hero? What Does A 1.5v Battery Look Like


The humble 1.5V battery, a ubiquitous power source in our everyday lives, can come in various shapes and sizes. While seemingly straightforward, their diverse appearances might leave us wondering: what does a 1.5V battery look like?

What Is A 1.5v Battery

A 1.5-volt battery is a common type of battery that provides a voltage of 1.5 volts when fully charged. These batteries are often used in various consumer electronics devices like flashlights, remote controls, toys, and other small gadgets.

The most common type of 1.5-volt battery is the AA battery, but other sizes like AAA, C, D, and N cells also provide 1.5 volts. These batteries can be either disposable (primary cells) or rechargeable (secondary cells).

Popular chemistries used in 1.5-volt batteries include alkaline, zinc-carbon (carbon-zinc), and lithium. Each battery chemistry has its own characteristics in terms of energy density, shelf life, and discharge performance, making them suitable for different types of devices and applications.

What Does A 1.5 v Battery Look Like

A 1.5-volt battery comes in various shapes and sizes depending on its intended use. Here are the most common types of 1.5-volt batteries along with their typical sizes and shapes:

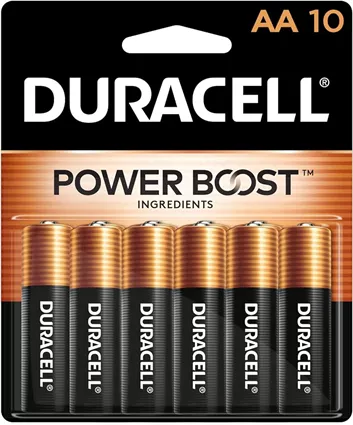

  1. AA Battery (LR6):

    • Size: Roughly 14.5mm in diameter and 50.5mm in length
    • Appearance: Cylindrical shape with a metal casing

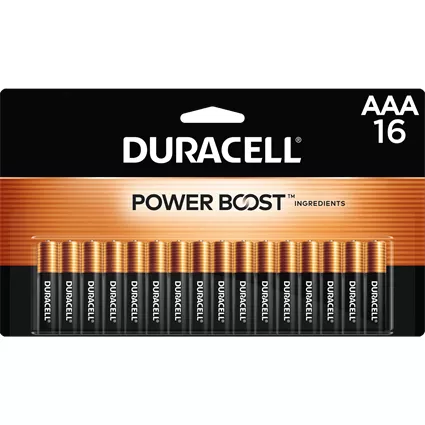

  2. AAA Battery (LR03):

    • Size: Roughly 10.5mm in diameter and 44.5mm in length
    • Appearance: Smaller version of the AA battery, also cylindrical

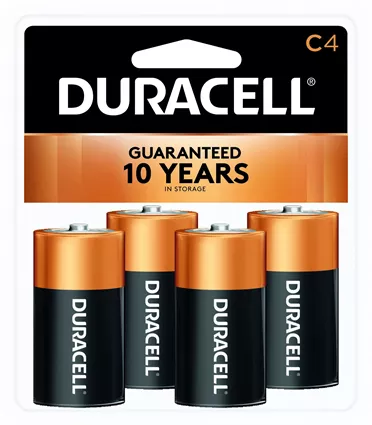

  3. C Battery (LR14):

    • Size: Roughly 26.2mm in diameter and 50mm in length
    • Appearance: Cylindrical with a larger diameter compared to AA and AAA batteries

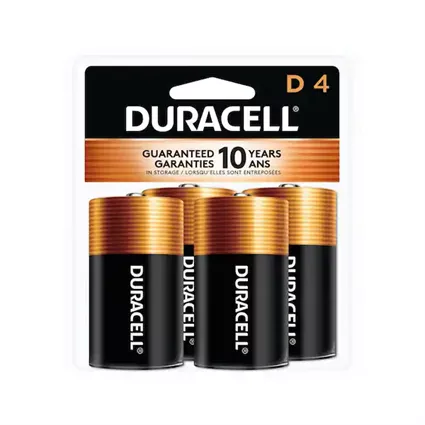

  4. D Battery (LR20):

    • Size: Roughly 34.2mm in diameter and 61.5mm in length
    • Appearance: Larger cylindrical battery, often used in devices that require more power
  5. N Battery (E90):

    • Size: Roughly 12mm in diameter and 30mm in length
    • Appearance: Short and cylindrical, used in smaller devices

These are some of the common types of 1.5-volt batteries, each designed for different applications based on their size, capacity, and voltage output.

How Do 1.5V Batteries Work

  1. Chemical Reaction: 1.5-volt batteries operate through a chemical reaction that occurs inside the battery cell. This reaction generates electrical energy by converting chemical energy into electrical energy. Different types of batteries use different chemical compositions for this purpose.

  2. Anode and Cathode: Inside the battery, there are two terminals - the positive terminal (cathode) and the negative terminal (anode). These terminals are connected through an electrolyte that allows the flow of ions between them.

  3. Electron Flow: When the battery is connected to a circuit or a device, electrons flow from the negative terminal (anode) through the external circuit to the positive terminal (cathode). This flow of electrons creates an electric current that can power electronic devices.

  4. Chemical Reactions: Within the battery, chemical reactions occur that involve the oxidation of the anode material and reduction of the cathode material. These reactions release electrons at the anode and absorb electrons at the cathode, maintaining a flow of electrons through the circuit.

  5. Discharge: As the battery discharges and electrons flow through the circuit, the chemical reactants within the battery deplete over time. Eventually, the battery will run out of reactants and no longer be able to generate a voltage, leading to the battery being considered "dead".

  6. Rechargeable Batteries: Some types of 1.5-volt batteries are rechargeable. In these batteries, the chemical reaction that occurs during discharge is reversible. When a rechargeable battery is connected to a charging source, the flow of current triggers the reverse chemical reactions, replenishing the reactants and allowing the battery to be reused multiple times.

Overall, 1.5-volt batteries work by harnessing chemical reactions to generate electrical energy, which can then be used to power a wide range of electronic devices.

How Long Does A 1.5v Battery Last

The lifespan of a 1.5-volt battery varies depending on several factors, such as the type of battery (alkaline, lithium, zinc-carbon), the capacity of the battery, the current draw of the device it is powering, and the operating conditions. Here are some general guidelines:

  1. Capacity: The capacity of a battery is typically measured in milliampere-hours (mAh) or ampere-hours (Ah). A higher-capacity battery will generally last longer than a lower-capacity one, assuming all other factors remain constant.

  2. Current Draw: The current draw of the device being powered by the battery significantly affects how long the battery will last. A device with higher power requirements will drain the battery more quickly than a device with lower power requirements.

  3. Temperature: Extreme temperatures can affect battery performance. High temperatures can cause batteries to discharge more quickly, while very cold temperatures can reduce their overall capacity.

  4. Storage: Proper storage of batteries when not in use is crucial. Storing batteries in a cool, dry place at moderate temperatures can help prolong their shelf life.

  5. Discharge Rate: Some devices may have a constant or varying current draw. Constant high currents can drain the battery faster than intermittent or lower currents.

In general, a typical alkaline AA battery with a capacity around 2500 mAh might last anywhere from a few hours to several months, depending on the factors mentioned above. A high-drain device like a digital camera may drain the battery quickly, whereas a low-power device like a wall clock may make the battery last for a year or more.

It's always a good idea to monitor the performance of the device being powered and replace the battery as needed to ensure optimal performance. Rechargeable batteries will have varying lifespans based on their capacity, how well they've been maintained, and the number of charge-discharge cycles they've been through.

How to Choose a 1.5v Battery with a Good Quality

Choosing a high-quality 1.5-volt battery is essential to ensure optimal performance and longevity for your devices. Here are some tips to help you select a good-quality 1.5-volt battery:

  1. Battery Type: Consider the type of battery that best suits your device. Alkaline batteries are a popular choice for general purposes, while lithium batteries offer higher performance and longer shelf life, making them suitable for high-drain devices.

  2. Brand Reputation: Opt for batteries from reputable brands known for producing reliable and high-quality products. Popular brands like Duracell, Energizer, Panasonic, and Rayovac are trusted for their consistent performance.

  3. Check Expiry Dates: Ensure that the batteries you purchase are fresh by checking the expiration or best-by date on the packaging. Using expired batteries can lead to reduced performance and leakage issues.

  4. Capacity: Look for batteries with higher capacities, measured in milliampere-hours (mAh), as they can provide longer operating times and better performance, especially for high-drain devices.

  5. Performance in High-Drain Devices: If you intend to use the batteries in high-drain devices like digital cameras or flashlights, choose batteries specifically designed for high-drain applications to ensure reliable power output.

  6. Environmentally Friendly Options: Consider eco-friendly options such as rechargeable batteries, which can be reused multiple times, reducing waste and saving money in the long run.

  7. Value Packs: Purchasing batteries in larger value packs can be cost-effective, especially if you use them frequently. However, ensure that you will use them before they reach their expiration date.

  8. Online Reviews: Before making a purchase, check online reviews and customer feedback to get an idea of the performance and reliability of the batteries you are considering.

  9. Store Properly: Proper storage can also impact battery quality. Keep batteries in a dry, cool place at moderate temperatures to maintain their performance and prolong their shelf life.

By considering these factors and selecting high-quality batteries from well-known brands, you can ensure reliable performance and longevity for your devices.

Tips for Your Storage and Usage

Proper usage and storage of batteries are crucial for ensuring their optimal performance, safety, and longevity. Here are some important tips to help you make the most of your batteries:

Storage Tips:

  1. Store in a Cool, Dry Place: Keep batteries in a cool, dry environment away from direct sunlight and moisture. High temperatures can reduce battery performance and life.

  2. Avoid Extreme Temperatures: Do not expose batteries to extreme temperatures, as both heat and cold can affect their performance. Ideally, store batteries at room temperature.

  3. Store Separately: Avoid storing loose batteries where they can come into contact with metal objects like coins, keys, or other batteries, as this can cause short circuits.

  4. Original Packaging: If possible, store batteries in their original packaging or in a battery case to prevent contact with other objects and to maintain their integrity.

  5. Check Expiration Dates: Ensure that you use batteries before their expiration date to guarantee optimal performance. Discard expired batteries according to local regulations.

Usage Tips:

  1. Follow Device Recommendations: Use batteries that are recommended for your specific device. Avoid mixing old and new batteries, as well as different brands or types.

  2. Remove Batteries When Not in Use: If a device will not be used for an extended period, remove the batteries to prevent leakage or corrosion damage.

  3. Avoid Overloading Devices: Follow manufacturer guidelines for the number and type of batteries to use in devices. Overloading can lead to overheating and cause damage.

  4. Rechargeable Batteries: If using rechargeable batteries, follow the manufacturer’s instructions for charging cycles to prolong their lifespan.

  5. Recycle Responsibly: Dispose of used batteries properly by recycling them at designated recycling facilities to prevent environmental contamination.

  6. Inspect Regularly: Check batteries for signs of leakage, corrosion, or damage. If you notice any issues, replace the batteries immediately to prevent damage to devices.

  7. Dispose of Damaged Batteries: If a battery shows signs of leakage, overheating, or damage, safely dispose of it according to local hazardous waste disposal guidelines.

By following these guidelines for storage and usage, you can maximize the performance and lifespan of your batteries while ensuring safety and minimizing environmental impact.
