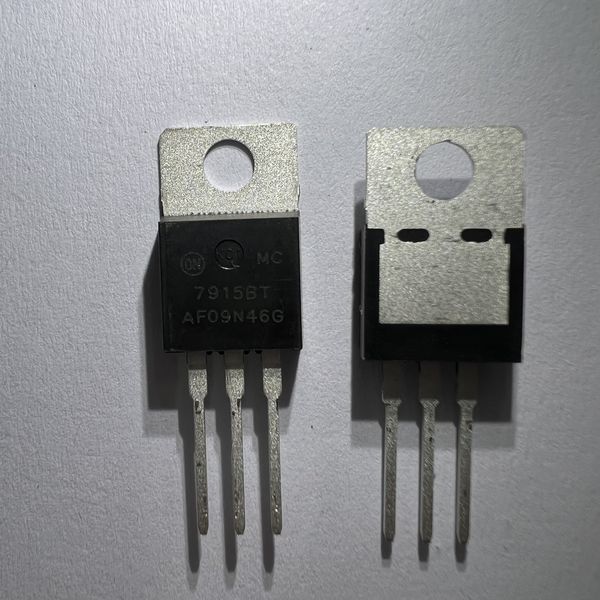

The MC7915BTG from ON Semiconductor is a negative voltage linear regulator IC. Below is a breakdown of the information provided:
Specifications:
- Manufacturer: ON Semiconductor
- Part Number: MC7915BTG
- Description: IC REG LINEAR -15V 1A TO220AB
-
DataSheet
Key Features:
- Regulator Type: Linear Voltage Regulator (Provides a stable output voltage from a higher input voltage)
- Output Voltage: -15V (Regulated negative output voltage)
- Output Current: 1A (Maximum output current capability)
- Package Type: TO-220AB (Through-Hole 3-Lead Package)
Main Uses:
- Voltage Regulation: Suitable for applications requiring a stable -15V power supply.
- Power Supplies: Commonly used in power supply circuits to generate negative voltage rails.
- Analog Circuits: Utilized in various analog circuit applications.
- Audio Equipment: Found in audio circuits and amplifiers requiring negative voltage supplies.
Working Principle:
- Linear Regulation: Uses active components to regulate the voltage difference from input to output to provide stable output voltage.
- -15V Output Voltage: Generates a negative 15V output voltage.
- 1A Output Current: Capable of supplying up to 1A of current to connected devices.
- TO-220AB Package: Through-hole package offering ease of mounting and heat dissipation capabilities.
The MC7915BTG from ON Semiconductor is a linear voltage regulator IC designed to provide a stable -15V output voltage with a maximum output current of 1A. This regulator is commonly used in various electronic devices and circuits that require a reliable and regulated negative power supply.
