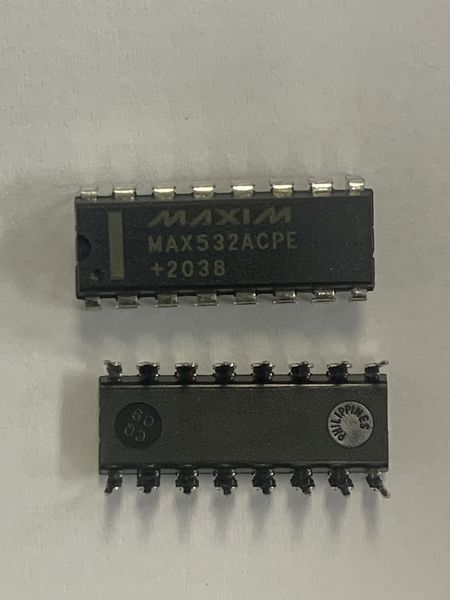

MAX532ACPE Maxim Integrated IC DAC 12BIT V-OUT 16DIP


The MAX532ACPE is an integrated circuit manufactured by Maxim Integrated. Here are some key details about this component:


  • Part Number: MAX532ACPE
  • Type: Digital-to-Analog Converter (DAC)
  • Resolution: 12-bit
  • Output Type: Voltage Output (V-OUT)
  • Package/Case: 16-DIP (Dual Inline Package)


The MAX532ACPE is designed to convert digital signals into analog voltages with a resolution of 12 bits. This type of DAC is commonly used in various applications such as waveform generation, audio applications, motor control, and sensor interfacing.


DACs like the MAX532ACPE are employed in a wide range of applications, including:

  • Audio equipment: for digital audio-to-analog conversion
  • Industrial control systems: for generating analog control signals
  • Test and measurement instrumentation: for waveform generation and signal generation
  • Telecommunications: in digital communication systems

Features and Benefits:

  • High Resolution: The 12-bit resolution offers fine voltage steps for precise analog output.
  • Voltage Output: The V-OUT configuration means the DAC produces an analog voltage as opposed to a current output, which might be more convenient in certain applications.
  • DIP Package: The 16-DIP package makes it suitable for through-hole PCB mounting, providing ease of use for certain designs and prototypes.

In summary, the MAX532ACPE by Maxim Integrated is a 12-bit voltage output digital-to-analog converter integrated circuit (IC) that finds applications in various areas including audio equipment, industrial control, telecommunications, and test and measurement instrumentation.
