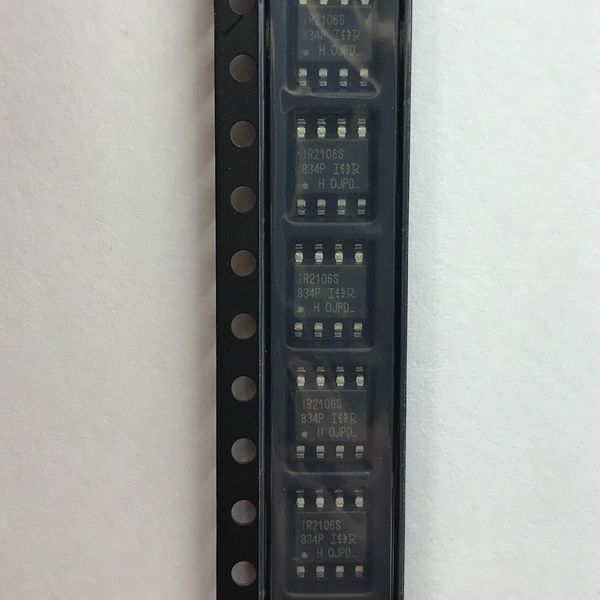

The IR2106S is an IC (integrated circuit) designed and manufactured by Infineon Technologies. It serves as a gate driver for a half-bridge configuration and features an 8-pin Small Outline Integrated Circuit (SOIC) package. This IC is tailored for driving high and low side power switches in applications such as motor drives, inverters, and other power control systems.
Key features of the IR2106S include:
- Function: Gate driver for a half-bridge
- Package: 8-SOIC (Small Outline Integrated Circuit)
- Application: Designed to control the high-side and low-side power switches in a half-bridge configuration
- Integrated Design: The IC combines the gate driver functionality for a half-bridge into a single, compact SOIC package, offering ease of use in various electronic applications.
This IC is typically utilized in half-bridge power circuit designs, enabling efficient and controlled switching operations for high-power applications. It is essential to refer to the datasheet and follow the recommended application guidelines provided by the manufacturer for proper integration and safe, reliable operation of this IC in your specific design.
DataSheet
