Differences between LM2576 vs LM2596

一、Introduction to LM2576

The LM2576 is a widely-used step-down switching voltage regulator IC produced by Texas Instruments. It is designed to efficiently convert higher input voltages to lower output voltages while handling moderate current loads. Here is an overview of the LM2576 voltage regulator:

Overview of LM2576 Voltage Regulator:

Functionality:

• Step-Down Regulator: Converts a higher input voltage to a lower output voltage with good efficiency.
• Switching Regulator: Operates on the principle of switching to regulate the output voltage.
• Voltage Regulation: Provides a stable output voltage across varying input voltages and loads.

Features:

• Wide Input Voltage Range: Can handle input voltages significantly higher than the desired output voltage.
• Adjustable Output: Allows for flexibility in setting the desired output voltage.
• Simple External Components: Requires minimal external components for operation.
• Efficient: Switching regulator design offers higher efficiency compared to linear regulators.
• Protection Features: Built-in thermal shutdown and current limit protection for reliability.

Pin Configuration:

• The LM2576 typically comes in a 5-pin TO-220 package or other variations.

Application Fields:

• Power Supplies: Used in various power supply designs for electronics.
• Battery Chargers: Regulating charging voltages for batteries.
• DC-DC Conversion: Efficiently converting DC voltages in different applications.
• Voltage Regulation: Stabilizing voltages in systems with fluctuating inputs.

Working Principle:

1. Switching Operation: The LM2576 regulates the output voltage by switching the input voltage on and off rapidly.
2. Inductor-Capacitor Filter: The inductor and capacitor circuit smooths the switched output to provide a stable DC voltage.
3. Feedback Mechanism: The feedback loop adjusts the duty cycle of the switching to maintain the desired output voltage.

Benefits:

• Efficiency: Switching regulator design reduces power loss and improves efficiency.
• Versatility: Suitable for a wide range of input and output voltage requirements.
• Compact Design: Integrates multiple functions in a small form factor.
• Reliability: Offers protection features for safe operation in various conditions.

Variants:

• LM2576-ADJ: Adjustable version allowing for variable output voltages.
• LM2576-5.0: Fixed-output version with a 5V output voltage.

Conclusion:

The LM2576 is a versatile and efficient voltage regulator IC widely used in various electronics applications where step-down voltage conversion is required. Its features, simplicity, and reliability make it a popular choice for power supply designs, DC-DC conversion circuits, and voltage regulation tasks. By understanding its working principles and applications, engineers and hobbyists can effectively incorporate the LM2576 into their electronic projects to achieve stable and regulated power supplies.

二、Introduction to LM2596

The LM2596 is a popular switching voltage regulator integrated circuit designed by Texas Instruments. It is commonly used for efficiently stepping down higher input voltages to lower output voltages with relatively high efficiency. Here is an introduction to the LM2596 voltage regulator:

Overview of LM2596 Voltage Regulator:

Functionality:

• Step-Down Regulator: Converts higher input voltage to a lower regulated output voltage efficiently.
• Switching Regulator: Utilizes a switching topology for voltage regulation, resulting in improved efficiency compared to linear regulators.
• Voltage Regulation: Provides stable output voltage despite variations in input voltage and load conditions.

Features:

• Wide Input Voltage Range: Can handle relatively high input voltages, providing flexibility in various applications.
• Adjustable Output Voltage: Allows for easy adjustment of the output voltage to suit specific requirements.
• Efficiency: Switching regulator design ensures higher efficiency by minimizing power losses.
• Protection Features: Typically includes over-temperature protection and current limiting for enhanced reliability.

Pin Configuration:

• The LM2596 is commonly available in TO-220, TO-263, and other package variants with different pin configurations.

Application Fields:

• Power Supplies: Widely used in power supply designs for electronic devices.
• LED Drivers: Efficiently driving LED lighting systems.
• Battery Charging: Regulating charging voltages for batteries.
• DC-DC Conversion: Converting DC voltages efficiently in various applications.

Working Principle:

1. Switching Operation: The LM2596 regulates the output voltage by switching the input voltage on and off at high frequencies.
2. Feedback Control: A feedback loop adjusts the duty cycle of the switching to maintain the desired output voltage.
3. Inductor-Capacitor Filtering: An LC filter smoothes the switched output to provide a stable DC voltage at the output.

Benefits:

• High Efficiency: Switching topology reduces power dissipation and improves efficiency.
• Flexible Voltage Regulation: Adjustable output voltage for a wide range of applications.
• Compact Design: Offers high power density in a small form factor.
• Reliability: Built-in protection features enhance operational safety and reliability.

Variants:

• LM2596S: Fixed output version available in common voltages like 3.3V, 5V, etc.
• LM2596 ADJ: Adjustable output version allowing for variable output voltages based on external components.

Conclusion:

The LM2596 is a versatile and efficient voltage regulator IC commonly used in electronic applications requiring efficient step-down voltage conversion. Its features, including high efficiency, adjustable output, and protection mechanisms, make it a popular choice for power supply designs, LED driver circuits, battery charging applications, and various other voltage regulation tasks. Understanding the working principles and applications of the LM2596 can help engineers and hobbyists effectively integrate this IC into their projects to achieve stable and reliable power supplies.

三、Main features of LM2576 and LM2596

The LM2576 and LM2596 are both popular switching voltage regulator ICs manufactured by Texas Instruments. Although they serve similar functions of stepping down higher input voltages to lower regulated output voltages with high efficiency, they do have some differences in terms of features and specifications. Here are the main features of the LM2576 and LM2596 ICs:

LM2576 Voltage Regulator:

Main Features of LM2576:

1. Fixed or Adjustable Output Voltage:

   • The LM2576 is available in both fixed and adjustable output voltage versions, catering to various application requirements.

2. Input Voltage Range:

   • Supports a wide input voltage range, allowing for flexibility in different power supply designs.

3. High Efficiency:

   • Utilizes a switching regulator design for improved efficiency compared to linear regulators, reducing power dissipation.

4. Package Variants:

   • Available in different package variants such as TO-220, providing options for various thermal and space requirements.

5. Simple External Components:

   • Requires a minimal number of external components for operation, simplifying circuit design.

6. Over-temperature and Current Limit Protection:

   • Typically includes built-in protection features like over-temperature and current limiting for enhanced reliability.

LM2596 Voltage Regulator:

Main Features of LM2596:

1. Adjustable or Fixed Output Voltage:

   • The LM2596 is available in both adjustable and fixed output voltage versions, offering versatility in voltage regulation.

2. Wide Input Voltage Range:

   • Handles a broad range of input voltages, providing flexibility in powering various electronic devices.

3. Switching Regulator Efficiency:

   • Utilizes a switching regulator topology for high efficiency voltage conversion, reducing power losses.

4. Thermal Shutdown and Current Limiting Protection:

   • Incorporates protection mechanisms like thermal shutdown and current limiting to safeguard the IC and the circuit.

5. Different Package Options:

   • Comes in various package options such as TO-220 and TO-263, catering to different PCB layout requirements.

6. Application Versatility:

   • Widely used in power supplies, LED drivers, battery chargers, and other applications requiring efficient voltage regulation.

Shared Features:

• Efficiency: Both the LM2576 and LM2596 leverage switching regulator designs to achieve high efficiency in voltage conversion.

• Adjustability: Depending on the variant, both ICs offer adjustable output voltage options, providing flexibility in setting the desired output levels.

• Reliability: Incorporate protection features like current limiting and thermal shutdown to ensure safe operation and protect the IC and surrounding circuitry.

• Versatility: Suitable for a wide range of applications requiring step-down voltage regulation, making them popular choices in electronics projects.

Although both the LM2576 and LM2596 share common features such as high efficiency, protection mechanisms, and flexibility in output voltage options, they are geared towards slightly different applications and may vary in their specific operational characteristics and package options. When selecting between these ICs, it's essential to consider the specific requirements of your project to choose the most suitable one for your application.

四、The working principle of LM2576 and LM2596

The LM2576 and LM2596 voltage regulator ICs operate based on a switching regulator topology to efficiently step down higher input voltages to regulated lower output voltages. While the working principles of LM2576 and LM2596 are similar due to their switching regulator designs, there are some variations based on their specific internal circuitry and configurations. Here is a general overview of the working principles of the LM2576 and LM2596 voltage regulators:

Working Principle of LM2576 and LM2596:

1. Input Stage:

   • The input stage of both ICs accepts a higher unregulated DC voltage input, typically from a power source such as a battery or an AC-DC adapter.

2. Switching Element (Switching Transistor):

   • Both ICs use an internal switching element (like a MOSFET) to rapidly switch the input voltage on and off. This switching action is controlled to regulate the output voltage.

3. Inductor-Capacitor Circuit:

   • The switching action causes the input voltage to be applied to an inductor, storing energy when the switch is closed. When the switch opens, the energy stored in the inductor is released to the output through a diode and a capacitor, smoothing the output voltage.

4. Feedback Mechanism:

   • Both ICs employ a feedback loop that monitors the output voltage and adjusts the duty cycle of the switching to maintain the desired output voltage level. This feedback loop ensures stable and regulated output voltage.

5. Control Circuitry:

   • The internal control circuitry in the IC regulates the switching frequency based on the load conditions and maintains the output voltage within the specified range.

6. Protection Features:

   • Both ICs typically include protection features such as over-temperature protection and current limiting to safeguard the IC and the circuitry from damage caused by abnormal operating conditions.

7. Efficiency:

   • By utilizing a switching regulator topology, both LM2576 and LM2596 achieve higher efficiency compared to linear regulators. The switching action minimizes power dissipation, making them suitable for applications where energy efficiency is crucial.

Additional Information:

• Adjustable vs. Fixed Output: Depending on the variant (adjustable or fixed output voltage), the internal circuitry might vary slightly to accommodate the adjustable voltage feature.

• External Components: Both ICs require external components such as input and output capacitors, inductors, feedback resistors, and other passive components for proper operation. The selection and values of these components play a crucial role in the circuit's overall performance.

• Application Notes: Texas Instruments provides detailed application notes and datasheets for the LM2576 and LM2596, offering guidance on circuit design, component selection, and best practices for optimal performance.

While both the LM2576 and LM2596 operate on the same fundamental switching regulator principle, understanding the specific datasheets and application notes for each IC can provide detailed insights into their unique design considerations and performance characteristics, helping designers implement these regulators effectively in their circuits for efficient voltage regulation.

五、Typical applications of LM2576 and LM2596

The LM2576 and LM2596 voltage regulator ICs find applications in a variety of electronic circuits where efficient step-down voltage conversion is required. These ICs are commonly used in numerous industries and projects due to their high efficiency, flexibility, and reliability. Here are some typical applications of the LM2576 and LM2596 voltage regulators:

Typical Applications of LM2576 and LM2596 Voltage Regulators:

1. Power Supplies:
   • Both the LM2576 and LM2596 are widely used in power supply designs for various electronic devices, ranging from small gadgets to larger systems.
2. Battery Chargers:
   • These voltage regulators are suitable for regulating charging voltages in battery charger circuits for different types of batteries.
3. LED Lighting Systems:
   • Due to their efficiency and current-handling capabilities, LM2576 and LM2596 are commonly used in LED driver circuits for lighting applications.
4. DC-DC Conversion:
   • They are utilized in various DC-DC converter circuits to efficiently convert one DC voltage to another, meeting different voltage requirements.
5. Automotive Electronics:
   • In automotive applications, LM2576 and LM2596 find use in powering various systems, including sensors, displays, and communication modules.
6. Industrial Control Systems:
   • These ICs are employed in industrial control systems for providing stable and regulated power to control units and sensors.
7. DIY Electronics:
   • LM2576 and LM2596 are popular choices for hobbyists and DIY enthusiasts for creating custom power supplies and voltage regulation circuits.
8. Solar Power Systems:
   • They are utilized in solar power systems for regulating voltages from solar panels to charge batteries or power electronic devices.
9. IoT Devices:
   • LM2576 and LM2596 are suitable for IoT (Internet of Things) applications to provide efficient power management for connected devices.
10. Consumer Electronics:
    • They are found in various consumer electronic devices like routers, set-top boxes, and audio equipment for power supply regulation.

Key Points:

• Efficiency: LM2576 and LM2596 are favored for their high efficiency in converting voltages, making them suitable for energy-sensitive applications.

• Flexibility: Their adjustable output voltage options allow for versatile use in a broad range of projects with differing voltage requirements.

• Reliability: With built-in protection features, they ensure safe operation in varied conditions, adding to their reliability.

• Compact Design: Their small form factor and minimal external components make them suitable for designs where space is a concern.

• Ease of Use: LM2576 and LM2596 are straightforward to implement, making them popular choices for both beginners and experienced electronic enthusiasts.

LM2576 and LM2596 voltage regulators play a significant role in modern electronics due to their efficiency, versatility, and reliability. Designers and engineers often rely on these ICs to create stable and efficient power supplies for a wide range of electronic applications across various industries.

六、Pin configuration of LM2576 and LM2596

The LM2576 and LM2596 are popular voltage regulator ICs that are used in various electronics applications for step-down voltage regulation. Below are the pin configurations for both the LM2576 and LM2596 ICs:

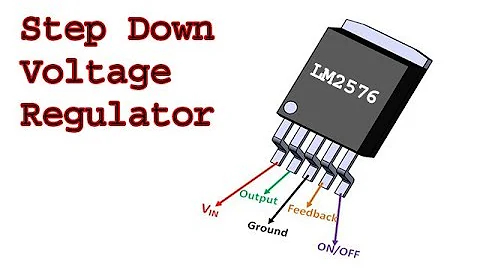

LM2576 Pin Configuration:

The LM2576 is a step-down voltage regulator available in various package types like TO-220, TO-263, etc. Here is the typical pinout for the LM2576 in a TO-220 package:

LM2576 TO-220 Package Pinout:

             +-----+
    Vin     |  1  |   Vin (Input Voltage)
    Vout    |  2  |   Vout (Output Voltage)
    Vc      |  3  |   Vc (Control Voltage)
    GND     |  4  |   GND (Ground)
             +-----+

• Vin: Input voltage pin.
• Vout: Output voltage pin.
• Vc: Control voltage or feedback pin.
• GND: Ground pin.

LM2596 Pin Configuration:

The LM2596 is also a step-down voltage regulator available in various package types like TO-220, TO-263, etc. Here is the typical pinout for the LM2596 in a TO-220 package:

LM2596 TO-220 Package Pinout:

             +-----+
    Vin+    |  1  |   Vin+ (Input Voltage)
    Vin-    |  2  |   Vin- (Input Ground)
    Vout    |  3  |   Vout (Output Voltage)
    Vc      |  4  |   Vc (Control Voltage)
    GND     |  5  |   GND (Ground)
             +-----+

• Vin+: Positive input voltage pin.
• Vin-: Negative input voltage or ground pin.
• Vout: Output voltage pin.
• Vc: Control voltage or feedback pin.
• GND: Ground pin.

Additional Information:

• The LM2576 and LM2596 typically require external components like input/output capacitors, inductors, and resistors for their operation. The values of these components depend on the specific application requirements.
• The Vc pin on both ICs is typically used for feedback to regulate the output voltage. Connecting this pin appropriately is critical for setting the desired output voltage.
• It's important to consult the respective datasheets of the LM2576 and LM2596 for detailed information on the pin functions, electrical characteristics, and recommended application circuits.

These pin configurations should give you a solid starting point for designing circuits that use the LM2576 and LM2596 voltage regulators effectively. Remember to refer to the datasheets for specific details based on the package type you are working with.

七、Packaging of LM2576 and LM2596

The LM2576 and LM2596 voltage regulator ICs are available in various package types to suit different application requirements and mounting options. The packaging of these ICs plays a significant role in determining factors such as thermal management, space constraints, and ease of assembly. Here are the common package types for the LM2576 and LM2596:

LM2576 Packaging Options:

1. TO-220 Package:

   • The LM2576 is commonly available in a TO-220 package, which is a through-hole package with three leads that can be soldered onto a PCB. This package is popular for its simplicity and ease of mounting.

2. TO-263 (D²PAK) Package:

   • The LM2576 may also come in a TO-263 package, also known as D²PAK (TO-263-3), featuring a larger surface area for better heat dissipation compared to the TO-220 package.

LM2596 Packaging Options:

1. TO-220 Package:

   • Similar to the LM2576, the LM2596 is often available in a TO-220 package, providing a standard through-hole mounting option suitable for various applications.

2. TO-263 (D²PAK) Package:

   • The LM2596 can also come in a TO-263 package (D²PAK), offering improved thermal performance and larger soldering areas for better heat dissipation.

3. SMD (Surface-Mounted Device) Packages:

   • Both the LM2576 and LM2596 may be available in surface-mount packages such as SOIC (Small Outline Integrated Circuit) or similar options, allowing for compact PCB designs and automated assembly processes.

Additional Information:

• Thermal Considerations: Packages like TO-263 are designed to enhance thermal dissipation, making them suitable for applications where heat management is crucial.

• Mounting Options: Through-hole packages like TO-220 are typically mounted on a PCB by soldering the leads through holes, while surface-mount packages are directly soldered onto the surface of the PCB.

• Application Specifics: When selecting a package type for the LM2576 or LM2596, consider factors such as board space, heat dissipation requirements, and assembly processes to ensure optimal performance in your specific application.

When choosing between the LM2576 and LM2596 for your project, it's essential to consider the available packaging options based on your application's requirements, thermal considerations, and assembly preferences. Check the datasheets or manufacturer specifications for detailed information on package dimensions, mounting instructions, and thermal characteristics to make an informed decision for your circuit design.

Frequently Asked Questions

1.What are the alternative models of LM2576?
LM2577, LM317, LM2596S, LT1083, MC34063, AP1501

2.What are the alternative models of LM2596?
LM2575, LM2597, LM2574, XL4015, MP2307

3.What are the advantages and limitations of LM2576 compared with other voltage regulator chips?
The LM2576 is capable of providing a stable output voltage that remains stable even when the input voltage fluctuates widely. This makes it suitable for applications requiring reliable power. A switching regulator can be more complex to design than a linear regulator because it requires external components such as inductors and capacitors to ensure proper operation.

4.What are the protection functions of LM2596?
Overload protection, current limit, short circuit protection, input voltage reverse polarity protection, overheating protection
