cr2032 battery usage, characteristics, heat dissipation

2023-12-11

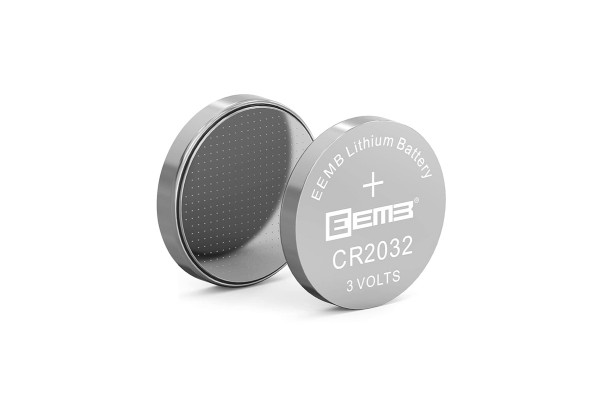

CR2032 Battery Usage: The CR2032 is a widely-used button cell battery with a voltage of 3 volts. Its small, flat form factor and reasonable capacity make it suitable for use in a variety of small devices and gadgets, including:

  1. Watches: Many watches, especially digital ones, are powered by CR2032 batteries.
  2. Calculators: Basic and scientific calculators often use CR2032 batteries due to their low power consumption and relatively long lifespan.
  3. Small Electronics: Various small electronic devices such as key fobs, small remote controls, electronic toys, and similar gadgets rely on CR2032 batteries for power.

Characteristics of CR2032 Battery:

  • Size: The CR2032 is a coin-type battery, with a diameter of 20 mm and a thickness of 3.2 mm.
  • Chemistry: It typically uses lithium manganese dioxide (LiMnO2) chemistry.
  • Voltage: Nominal voltage of 3 volts.
  • Capacity: The typical capacity of a CR2032 battery ranges from 200 to 240 milliampere-hours (mAh).
  • Shelf Life: Generally, CR2032 batteries have a shelf life of about 10 years when stored at room temperature.

Heat Dissipation: Heat dissipation of a CR2032 battery is generally not a major concern, provided that the battery is used within its specified operating conditions. However, excessive heat due to overcurrent or short-circuit conditions can potentially cause the battery to reach high temperatures, which might lead to leakage, venting, or other hazardous conditions.

When using CR2032 batteries, it's essential to consider the following for proper heat management:

  1. Operating Temperature Range: Ensure that the battery operates within the specified temperature range. Typically, the operating temperature range for CR2032 batteries is around -30°C to 60°C (-22°F to 140°F).
  2. Prevent Short Circuits: Unintentional short circuits can lead to excessive current drain, potentially generating heat. Ensure that the battery is inserted in the device correctly and that any external connections to the battery are appropriately insulated.
  3. Overcurrent Protection: For applications where overcurrent is a concern, external circuitry or protection devices can be used to limit the current drawn from the battery, preventing excessive heat generation.

Although CR2032 batteries are generally considered safe when used in the intended manner, as with any battery, appropriate handling, storage, and use should be observed to prevent potential hazards. If there are specific concerns regarding heat dissipation, consulting the battery’s datasheet or contacting the manufacturer can provide detailed recommendations for safe and proper usage.
