A Comprehensive Overview of 4 Ultrasound Transducer Types

An ultrasound transducer is a device that generates and receives ultrasound signals in ultrasound imaging systems. These transducers are a critical component in ultrasound machines, converting electrical energy into sound waves (ultrasound) and vice versa.

Here are some key points about ultrasound transducers:

1. Function: Ultrasound transducers operate based on the piezoelectric effect. When an electrical current is applied to the transducer, it vibrates and emits high-frequency sound waves. These sound waves travel through the body, bounce off tissues, and return to the transducer.

2. Detection: After the sound waves return to the transducer, it functions in reverse, converting the received sound waves back into electrical signals. These signals are then processed by the ultrasound machine to create an image of the internal structures of the body.

3. Types: There are different types of ultrasound transducers designed for various purposes, such as linear transducers for high-resolution imaging, convex transducers for imaging larger areas, phased array transducers for cardiac imaging, and endocavity transducers for internal examinations.

4. Frequency: The frequency of the ultrasound waves produced by the transducer can vary depending on the application. Higher frequencies provide better resolution for superficial structures, while lower frequencies penetrate deeper into the body for imaging organs.

5. Design: Ultrasound transducers consist of multiple piezoelectric crystals or elements arranged in an array. The configuration of these elements determines the shape and characteristics of the ultrasound beam produced by the transducer.

6. Maintenance: Proper care and maintenance of ultrasound transducers are essential to ensure optimal performance and longevity. Regular cleaning, inspection for damage, and adherence to manufacturer guidelines are important for maximizing the lifespan of the transducer.

Ultrasound transducers are indispensable tools in medical imaging, offering a non-invasive and safe method for visualizing internal structures of the body. They are widely used in various medical specialties, including obstetrics, gynecology, cardiology, radiology, and many others, to diagnose and monitor a wide range of conditions.

How Do Ultrasound Transducers Work

Ultrasound transducers are essential components of ultrasound machines, functioning to both generate and receive ultrasound waves. Here is an overview of how ultrasound transducers work:

1. Piezoelectric Effect: Ultrasound transducers operate based on the piezoelectric effect. This effect describes the ability of certain materials, such as certain types of crystals or ceramics, to generate an electric charge in response to mechanical pressure or vibrations.

2. Transmitting Ultrasound Waves:

   • When an electrical current is applied to the ultrasound transducer, the piezoelectric elements within the transducer vibrate rapidly, converting the electrical energy into high-frequency sound waves.
   • These sound waves are focused into a beam and transmitted into the body through a coupling gel or interface to prevent air gaps that can distort the ultrasound image.

3. Interaction with Tissues:

   • The ultrasound waves travel through the body until they encounter boundaries between tissues with different acoustic impedance (a property related to how easily a material can transmit sound waves).
   • When the ultrasound waves encounter these boundaries, some of the energy is reflected back to the transducer while some continues deeper into the body.

4. Receiving Ultrasound Waves:

   • After the transmitted ultrasound waves interact with the tissues and are reflected back, the piezoelectric elements in the transducer convert the returning sound waves (echoes) into electrical signals.
   • These electrical signals are then processed by the ultrasound machine's electronics to create an image of the internal structures of the body.

5. Image Formation:

   • By processing the time it takes for the ultrasound waves to reflect back from different tissues and the intensity of the returning echoes, the ultrasound machine constructs a real-time image that represents the internal structures of the body.
   • The image is displayed on the ultrasound monitor, allowing healthcare professionals to visualize organs, tissues, and abnormalities for diagnostic and monitoring purposes.

6. Types of Transducers: Ultrasound transducers come in various shapes and sizes to accommodate different imaging needs, such as linear array transducers for detailed imaging, curvilinear array transducers for broader coverage, and phased array transducers for specialized applications like cardiac imaging.

Ultrasound transducers are versatile tools used in various medical specialties for non-invasive imaging. Their ability to generate high-frequency sound waves, receive echoes from tissues, and create real-time images plays a crucial role in diagnostics, monitoring, and guiding medical procedures.

Differernt Types of Ultrasound Transducers

There are several types of ultrasound transducers, each designed for specific imaging requirements and applications. Here are some common types of ultrasound transducers:

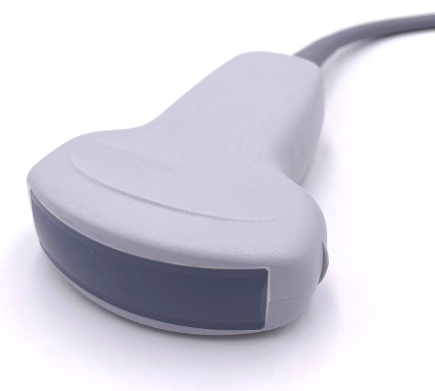

1. Curvilinear Array Transducers: Curvilinear array transducers have a curved or convex shape and are used for imaging deep structures in the body. They provide a wider field of view compared to linear array transducers, making them suitable for abdominal and obstetric imaging.

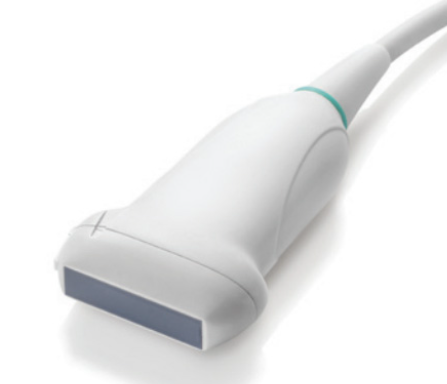

2. Linear Array Transducers: Linear array transducers have a straight or linear shape with multiple crystal elements arranged in a line. They are ideal for high-resolution imaging of superficial structures, such as blood vessels, tendons, and breasts. Linear array transducers are commonly used in musculoskeletal and vascular ultrasound exams.

3. Phased Array Transducers: Phased array transducers use a group of crystal elements that can be electronically steered to change the direction of the ultrasound beam without physically moving the transducer. They are commonly used in cardiac ultrasound imaging for obtaining images of the heart from different angles.

4. Endocavitary Transducers: Endocavitary transducers are designed for internal examinations and are inserted into body cavities such as the vagina (in gynecological exams), rectum, or esophagus for imaging specific internal structures.

5. Transesophageal Echocardiography (TEE) Transducers: These specialized transducers are used in transesophageal echocardiography, a technique that involves inserting a probe into the esophagus to obtain detailed images of the heart and surrounding structures. TEE transducers provide higher-resolution images of the heart than traditional transthoracic echocardiography.

6. Intracavitary Transducers: These transducers are used for imaging inside body cavities during procedures such as interventional radiology, where real-time imaging guidance is required.

7. Microconvex Array Transducers: Microconvex array transducers have a small curvilinear shape and are used for imaging small or superficial structures. They are commonly used in pediatric and neonatal imaging due to their smaller footprint.

8. 3D/4D Transducers: These transducers are equipped with additional technology to capture volumetric data and create three-dimensional (3D) or four-dimensional (4D) images. 3D ultrasound provides a more comprehensive view of the imaged area, while 4D ultrasound adds the element of real-time motion to 3D images, commonly used in obstetrics for capturing fetal movements.

Each type of ultrasound transducer is tailored to meet specific imaging needs, allowing healthcare professionals to obtain clear and detailed images of different anatomical structures for diagnostic purposes across various medical specialties.

What Do Ultrasound Transducers Do

Ultrasound transducers play a crucial role in medical imaging by converting electrical energy into high-frequency sound waves (ultrasound) and vice versa. These transducers are key components of ultrasound machines and perform several essential functions:

1. Ultrasound Generation: The primary function of an ultrasound transducer is to generate high-frequency sound waves using the piezoelectric effect. When an electrical current is applied to the transducer, the piezoelectric crystals within the transducer vibrate rapidly, creating ultrasound waves.

2. Transmission of Ultrasound Waves: The generated ultrasound waves are focused into a beam and transmitted into the body through a coupling medium (such as gel) to ensure efficient transmission and prevent air gaps that can distort the image.

3. Interaction with Tissues: The ultrasound waves travel through the body and interact with tissues. When the ultrasound waves encounter boundaries between tissues with different acoustic properties, such as density or elasticity, some of the energy is reflected back toward the transducer while some continues deeper into the body.

4. Reception of Reflected Ultrasound Waves: After the ultrasound waves reflect off tissues and structures within the body, the transducer then functions as a receiver, converting the returning sound waves (echoes) into electrical signals.

5. Signal Processing: The electrical signals received by the transducer are sent to the ultrasound machine's processing unit, where they are amplified, filtered, and converted into a digital format for further analysis and image formation.

6. Image Formation: By analyzing the time it takes for the ultrasound waves to reflect back from different tissues and the strength of the returning echoes, the ultrasound machine creates a real-time image that represents the internal structures of the body. This image is displayed on a monitor for interpretation by healthcare professionals.

7. Specialized Imaging: Different types of ultrasound transducers are designed to address specific imaging needs, such as linear array transducers for high-resolution imaging of superficial structures, curved array transducers for broader coverage, phased array transducers for cardiac imaging, and endocavitary transducers for internal examinations.

8. Diagnostic Applications: Ultrasound transducers are used in various medical specialties for diagnostic purposes, including obstetrics, gynecology, cardiology, radiology, and many others. They provide non-invasive imaging of organs, tissues, and abnormalities to aid in diagnosis and treatment planning.

Overall, ultrasound transducers are essential components in ultrasound imaging systems, enabling healthcare professionals to visualize internal structures of the body in real time, leading to accurate diagnoses and effective patient care.

Summary

Ultrasound transducers are vital components of ultrasound machines used in medical imaging. They convert electrical energy into high-frequency sound waves and vice versa through the piezoelectric effect. These transducers generate ultrasound waves, transmit them into the body, receive the returning echoes, and process the signals to create real-time images of internal structures. Various types of transducers cater to different imaging needs across medical specialties, facilitating non-invasive diagnostic imaging for healthcare professionals to evaluate organs, tissues, and abnormalities effectively.
